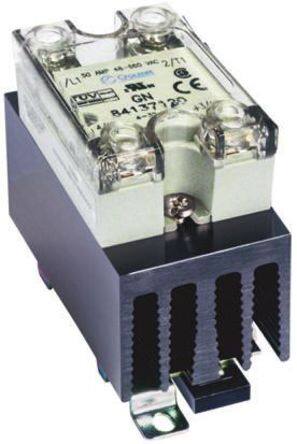

HS301DR-84137010
RoHS
RoHS compliant
RoHS compliantPackage Hockey Puck with Heat Sink
Category Relays / Solid State Relays
Description
AC Zero Cross RoHS Compliant Active SPST Solid State Relay 80C 3V~32VDC 79.2mm 25A
PDF
/
Buying Options
Total Price: USD $293.39
Unit Price: USD $293.387199
≥1 USD $293.387199
≥200 USD $117.063416
≥500 USD $113.152287
≥1000 USD $111.218385
Inventory: 9201
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 45mm
Height 79.2mm
Technical
Load Current 25A
Voltage - Load 24V~280V
Relay Type Relay
Throw Configuration SPST
Voltage - Input 3V~32VDC
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Termination Style Screw Terminal
Depth 81mm
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series HS
Published 2009
Packaging Bulk
Physical
Package / Case Hockey Puck with Heat Sink
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
