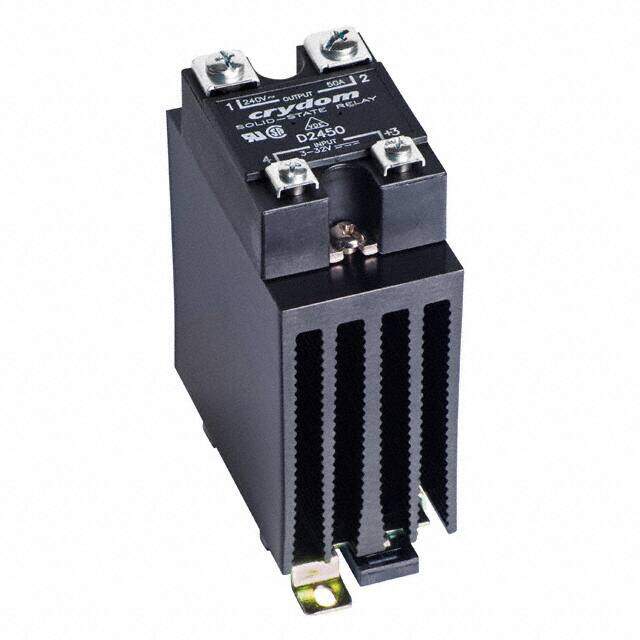

HS201DR-CC2425W3U image
Favorite
HS201DR-CC2425W3U image
Favorite

HS201DR-CC2425W3U

Sensata-Crydom
RoHS
RoHS RoHS compliant
Package Hockey Puck with Heat Sink
Category Relays / Solid State Relays
Description Lead Free AC Zero Cross General Purpose Passive RoHS Compliant Solid State Relay 4V~32VDC 80mm 35A
PDF
/
Inventory: 8987
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC

Dimensions

Width 81mm
Length 97mm
Height 80mm

Technical

RMS Current (Irms) 35A
Voltage - Load 24V~280V
Relay Type Relay
Max Surge Current 300A
Max Voltage Rating (DC) 32V
Throw Configuration SPST
Voltage - Input 4V~32VDC
Min Supply Voltage 24V
Max Supply Voltage 280V
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Output Voltage 280V
Approval Agency CE, CSA, UL, VDE
Termination Style Screw Terminal
Current Rating 35A
Depth 45mm
Type General Purpose, Passive
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series HS
Published 2009
Packaging Bulk

Physical

Package / Case Hockey Puck with Heat Sink
Mounting Type DIN Rail
Mount DIN Rail

Supply Chain

Factory Lead Time 7 Weeks
