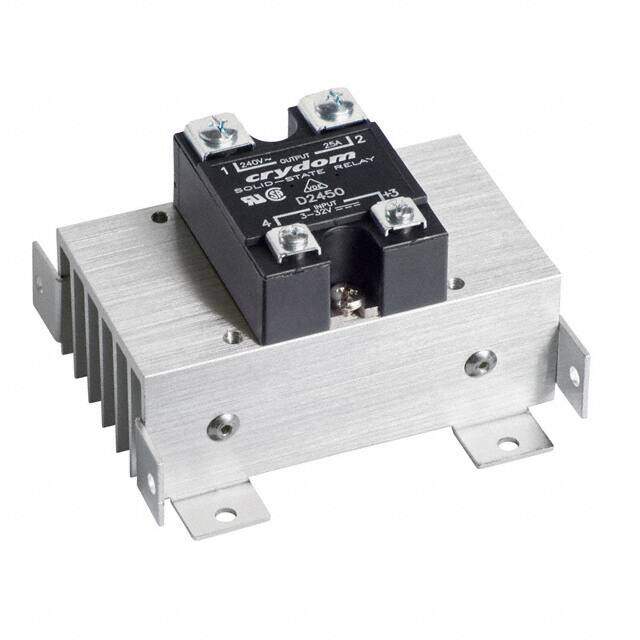

HS172-D2450
RoHS
RoHS compliant
RoHS compliantPackage Hockey Puck with Heat Sink
Category Relays / Solid State Relays
Description
AC Zero Cross RoHS Compliant Active SPST Solid State Relay 80C 3V~32VDC 40.6mm 36A
PDF
/
Inventory: 2315
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Chassis, Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Package / Case Hockey Puck with Heat Sink
Number of Pins 4
Technical
Packaging Bulk
Published 2007
Series HS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Max Operating Temperature 80°C
Min Operating Temperature -40°C
Depth 85.3mm
Current Rating 36A
Termination Style Screw Terminal
Output Type AC, Zero Cross
Circuit SPST-NO (1 Form A)
Voltage - Input 3V~32VDC
Throw Configuration SPST
Max Output Voltage 280V
Relay Type Relay
Voltage - Load 24V~280V
Input Current 3.4mA
Load Current 36A
Isolation Voltage 4kV
Dimensions
Height 40.6mm
Length 104.7mm
Width 85.3mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
