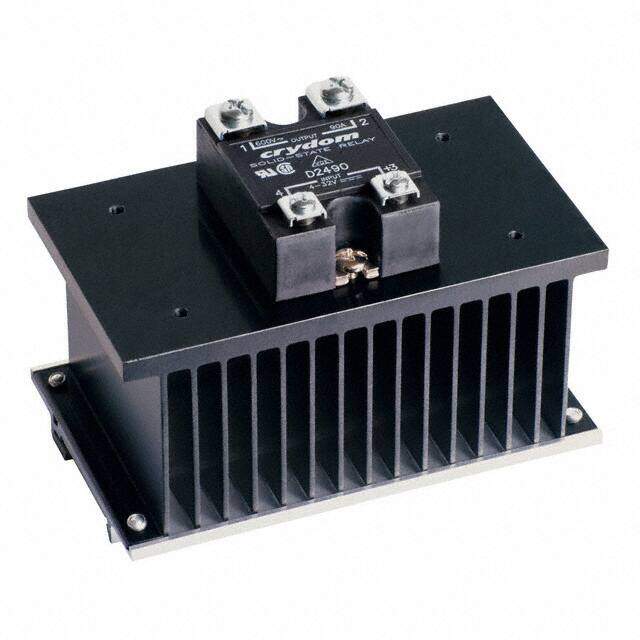

HS103DR-HD6090
RoHS
RoHS compliant
RoHS compliantPackage Hockey Puck with Heat Sink
Category Relays / Solid State Relays
Description
AC Zero Cross Passive RoHS Compliant Active Solid State Relay 3V~32VDC 60.2mm 55A
PDF
/
Buying Options
Total Price: USD $669.82
Unit Price: USD $669.821887
≥1 USD $669.821887
≥200 USD $267.264427
≥500 USD $258.332769
≥1000 USD $253.920112
Inventory: 5597
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case Hockey Puck with Heat Sink
Number of Pins 4
Technical
Packaging Bulk
Published 2010
Series HS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Passive
Depth 76.2mm
Current Rating 55A
Termination Style Screw Terminal
Output Type AC, Zero Cross
Circuit SPST-NO (1 Form A)
Max Supply Voltage 660V
Min Supply Voltage 48V
Voltage - Input 3V~32VDC
Throw Configuration SPST
Max Voltage Rating (DC) 32V
Max Surge Current 1.2kA
Relay Type Relay
Voltage - Load 48V~660V
RMS Current (Irms) 55A
Dimensions
Height 60.2mm
Length 132.1mm
Width 76.2mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
