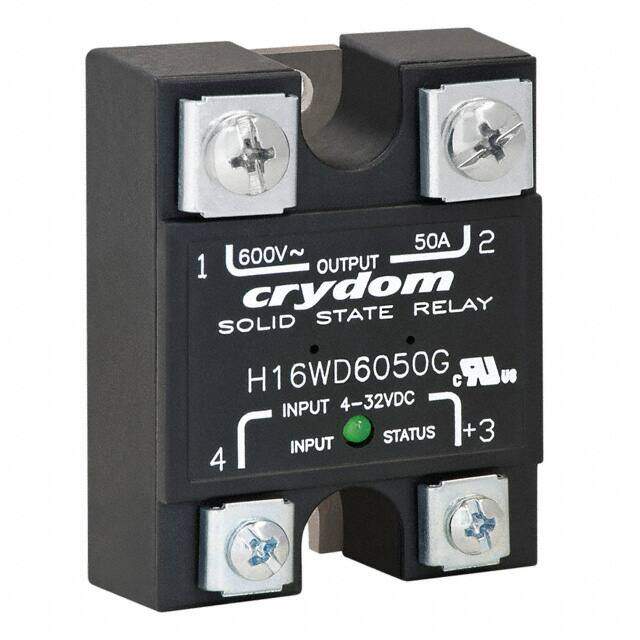

H16WD6050G
RoHS
RoHS compliant
RoHS compliantPackage Hockey Puck
Category Relays / Solid State Relays
Description
SSR, 600VAC, 50A, DC IN, W/ LED, ZC
PDF
/
Inventory: 9738
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 45.7mm
Length 58.4mm
Height 23mm
Technical
Min Supply Voltage (AC) 48V
Max Supply Voltage (AC) 660V
Isolation Voltage 4kV
Load Current 50A
Input Current 11mA
Voltage - Load 48V~660V
Relay Type Relay
Max Output Voltage 660V
Throw Configuration SPST
Voltage - Input 4V~32VDC
Max Voltage Rating (AC) 660V
Circuit SPST-NO (1 Form A)
Operating Supply Voltage 660V
Output Type AC, Zero Cross
Termination Style Screw Terminal
Current Rating 50A
Depth 19.8mm
Capacitance 8pF
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series H16WD
Published 2011
Packaging Bulk
Physical
Weight 86.500008g
Number of Pins 4
Package / Case Hockey Puck
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 6 Weeks
