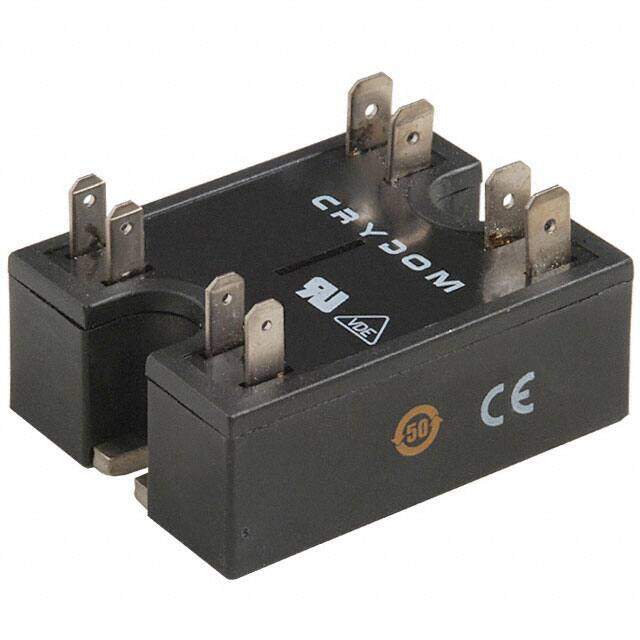

H12D4840D
RoHS
RoHS compliant
RoHS compliantPackage Hockey Puck
Category Relays / Solid State Relays
Description
RELAY SSR 40A 480VAC AC OUT PNL
PDF
/
Buying Options
Total Price: USD $305.37
Unit Price: USD $305.37135
≥1 USD $305.37135
≥200 USD $121.844997
≥500 USD $117.773695
≥1000 USD $115.762332
Inventory: 5926
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 33.3mm
Length 45.7mm
Height 58.4mm
Technical
Isolation Voltage 4kV
Load Current 40A
Input Current 13mA
Voltage - Load 48V~530V
Relay Type Relay
Max Output Voltage 530V
Throw Configuration DPST, SPST
Output Current 40A
Voltage - Input 4V~15VDC
Circuit SPST-NO (1 Form A) x 2
Operating Supply Voltage 530V
Max Output Current 40A
Output Type AC, Zero Cross
Approval Agency CE, UL, VDE
Voltage - Rated AC 530V
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating 40A
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Termination Quick Connect
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series H12D
Published 2009
Packaging Bulk
Physical
Number of Pins 8
Package / Case Hockey Puck
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 6 Weeks
