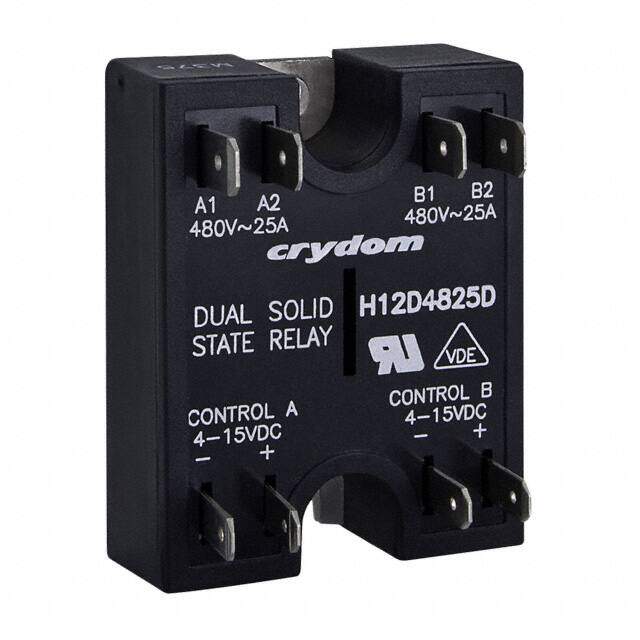

H12D4825D
RoHS
RoHS compliant
RoHS compliantPackage Hockey Puck
Category Relays / Solid State Relays
Description
RELAY SSR 25A 480VAC AC OUT PNL
PDF
/
Buying Options
Total Price: USD $119.71
Unit Price: USD $119.7064
≥1 USD $119.7064
≥10 USD $114.0128
≥100 USD $108.829776
Inventory: 92
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Width 21.6mm
Length 45.7mm
Height 58.4mm
Technical
Load Current 25A
Voltage - Load 48V~530V
Relay Type Relay
Max Output Voltage 530V
Throw Configuration DPST, SPST
Output Current 250A
Voltage - Input 4V~15VDC
Circuit SPST-NO (1 Form A) x 2
Operating Supply Voltage 530V
Max Output Current 25A
Output Type AC, Zero Cross
Approval Agency CE, UL, VDE
Voltage - Rated AC 530V
Termination Style Screw Terminal
Current Rating 25A
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series H12D
Published 2013
Packaging Bulk
Physical
Number of Pins 8
Package / Case Hockey Puck
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 6 Weeks
