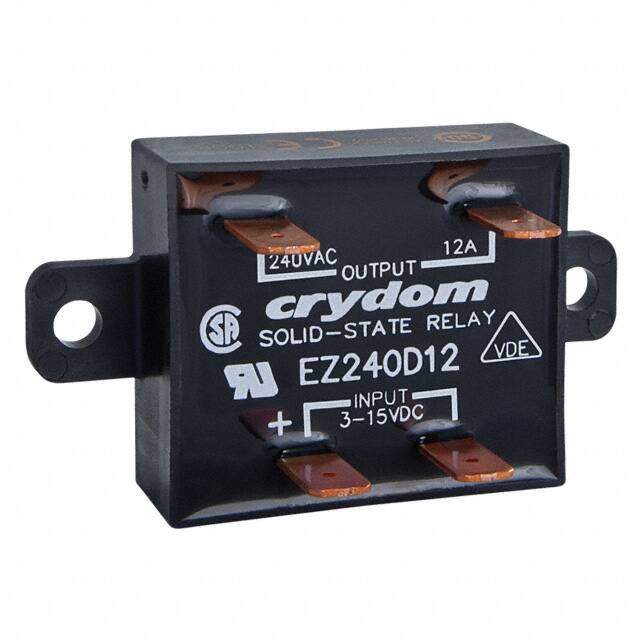

EZ240D12
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description
SSR RELAY SPST-NO 12A 24-280V
PDF
/
Buying Options
Total Price: USD $46.26
Unit Price: USD $46.2616
≥1 USD $46.2616
≥10 USD $44.0528
≥100 USD $42.055376
≥500 USD $40.814664
Inventory: 68
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 38mm
Length 66.5mm
Height 26.6mm
Technical
Isolation Voltage 4kV
Load Current 12A
Input Current 15mA
Voltage - Load 24V~280V
Relay Type Relay
Max Output Voltage 280V
Throw Configuration SPST
Output Current 12A
Voltage - Input 3V~15VDC
Circuit SPST-NO (1 Form A)
Operating Supply Voltage 280V
Output Type AC, Zero Cross
Output Voltage 280V
Approval Agency CSA, UL, VDE
Voltage - Rated AC 280V
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating 12A
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series EZ
Published 2009
Packaging Bulk
Physical
Number of Pins 4
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 6 Weeks
