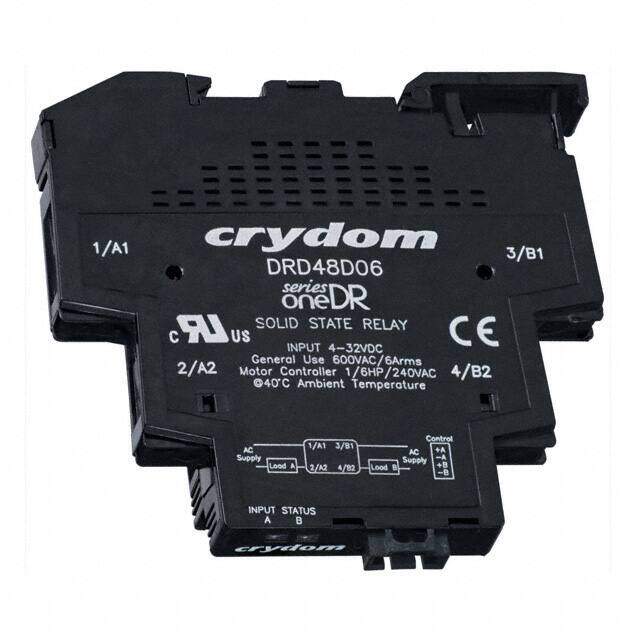

DRD48D06R
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description
SSR RELAY SPST-NO 6A 48-600V
PDF
/
Inventory: 4516
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case Module
Number of Pins 8
Technical
Packaging Bulk
Published 2010
Series DR Dual
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Depth 18mm
Current Rating 6A
Termination Style Screw Terminal
Voltage - Rated AC 600V
Output Voltage 600V
Output Type AC
Circuit SPST-NO (1 Form A) x 2
Max Voltage Rating (AC) 600V
Voltage - Input 4V~32VDC
Throw Configuration DPST, SPST
Max Voltage Rating (DC) 32V
Turn On Delay Time 100 μs
Max Output Voltage 600V
Max Surge Current 750A
Relay Type Relay
Voltage - Load 48V~600V
Max Input Current 11mA
Input Current 11mA
Load Current 6A
Isolation Voltage 2.5kV
Max Supply Voltage (AC) 600V
Min Supply Voltage (AC) 48V
Dimensions
Height 90.3mm
Length 84.4mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
