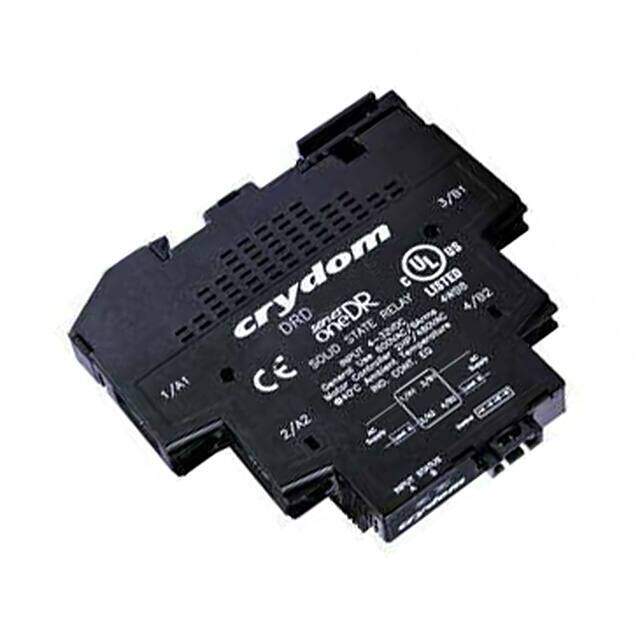

DRD24D06
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description
Lead Free AC Zero Cross RoHS Compliant Active Solid State Relay 80C 4V~32VDC 90.3mm 6A
PDF
/
Inventory: 10006
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 84.4mm
Height 90.3mm
Technical
Min Supply Voltage (AC) 24V
Max Supply Voltage (AC) 280V
Isolation Voltage 2.5kV
Load Current 6A
Input Current 11mA
Max Input Current 11mA
Voltage - Load 24V~280V
Relay Type Relay
Max Surge Current 750A
Max Output Voltage 280V
Max Voltage Rating (DC) 32V
Throw Configuration DPST, SPST
Voltage - Input 4V~32VDC
Min Supply Voltage 24V
Max Supply Voltage 280V
Circuit SPST-NO (1 Form A) x 2
Output Type AC, Zero Cross
Output Voltage 280V
Voltage - Rated AC 280V
Termination Style Screw Terminal
Current Rating 6A
Depth 18mm
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series DR Dual
Published 2010
Packaging Bulk
Physical
Number of Pins 8
Package / Case Module
Mounting Type DIN Rail
Mount DIN Rail, Panel
Supply Chain
Factory Lead Time 5 Weeks
