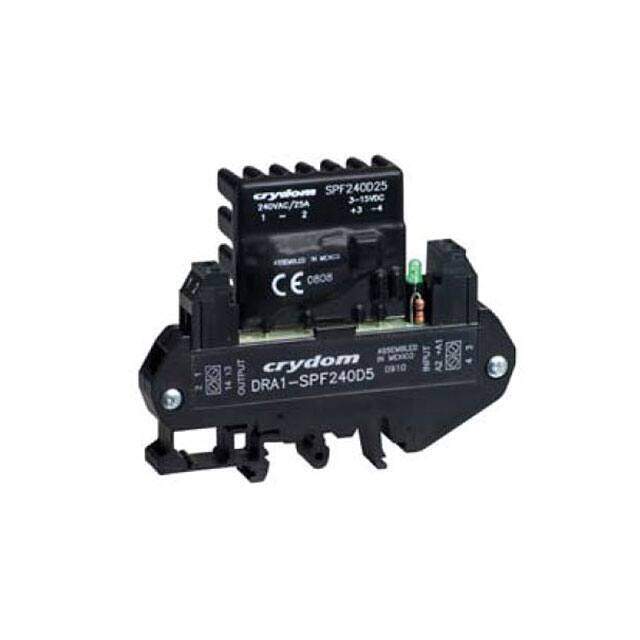

DRA1-SPFE240D25R
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description
Relay SSR 15mA 32V DC-IN 10A 280V AC-OUT
PDF
/
Buying Options
Total Price: USD $65.94
Unit Price: USD $65.9384
≥1 USD $65.9384
Inventory: 60
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mount DIN Rail, Panel
Mounting Type DIN Rail
Package / Case Module
Technical
Packaging Bulk
Published 2009
Series DRA
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Depth 22.9mm
Current Rating 10A
Termination Style Screw Terminal
Output Type AC
Circuit SPST-NO (1 Form A)
Max Supply Voltage 280V
Min Supply Voltage 12V
Voltage - Input 15V~32VDC
Output Current 10A
Throw Configuration SPST
Max Output Voltage 280V
Max Surge Current 250A
Relay Type Relay
Voltage - Load 12V~280V
RMS Current (Irms) 8A
Input Current 15mA
Isolation Voltage 4kV
Dimensions
Height 69.9mm
Length 89.6mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
