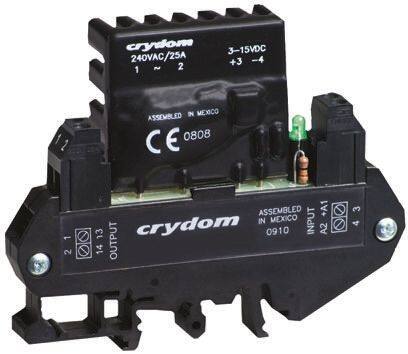

DRA1-SPF380D25
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description
Solid State Relays - Industrial Mount DIN Mt 380 VAC/8A out 4-15 VDC input
PDF
/
Inventory: 985
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case Module
Number of Pins 4
Technical
Packaging Bulk
Published 2009
Series DRA
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Depth 22.9mm
Current Rating 8A
Termination Style Screw Terminal
Output Type AC, Zero Cross
Circuit SPST-NO (1 Form A)
Max Voltage Rating (AC) 380V
Voltage - Input 4V~15VDC
Throw Configuration SPST
Max Output Voltage 380V
Relay Type Relay
Voltage - Load 48V~530V
Max Supply Voltage (AC) 380V
Min Supply Voltage (AC) 48V
Dimensions
Height 69.9mm
Length 89.6mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
