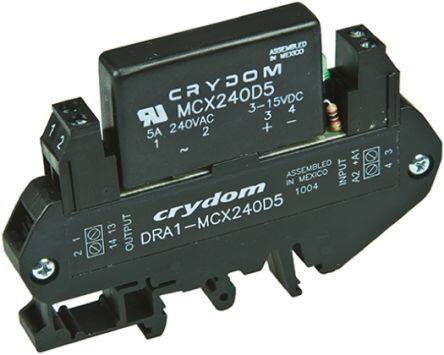

DRA1-MCXE380D5
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description
Relay SSR 15mA 32V DC-IN 5A 380V AC-OUT
PDF
/
Inventory: 4473
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 10.03mm
Length 89.6mm
Height 89.6mm
Technical
Min Supply Voltage (AC) 48V
Max Supply Voltage (AC) 380V
Isolation Voltage 4kV
Load Current 5A
Input Current 15mA
RMS Current (Irms) 5A
Voltage - Load 48V~530V
Relay Type Relay
Max Surge Current 250A
Max Output Voltage 380V
Max Voltage Rating (DC) 32V
Throw Configuration SPST
Voltage - Input 15V~32VDC
Max Voltage Rating (AC) 380V
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Rated AC 380V
Termination Style Screw Terminal
Current Rating 5A
Depth 10mm
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series DRA
Packaging Bulk
Physical
Number of Pins 4
Package / Case Module
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 6 Weeks
