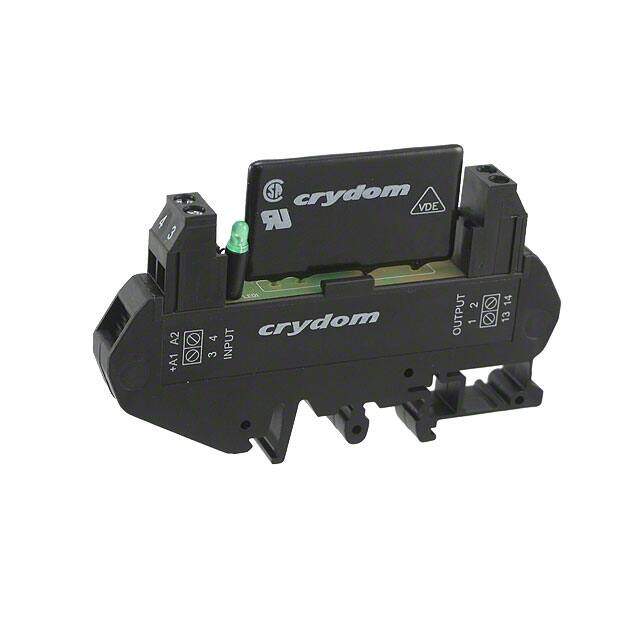

DRA1-CX380D5
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description
SSR RELAY SPST-NO 5A 48-530V
PDF
/
Inventory: 5419
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 10.03mm
Length 89.6mm
Height 89.6mm
Technical
Min Supply Voltage (AC) 48V
Max Supply Voltage (AC) 530V
Isolation Voltage 4kV
Load Current 5A
Input Current 15mA
RMS Current (Irms) 5A
Voltage - Load 48V~530V
Relay Type Relay
Max Surge Current 250A
Max Output Voltage 380V
Max Voltage Rating (DC) 15V
Throw Configuration SPST
Voltage - Input 4V~15VDC
Min Supply Voltage 48V
Max Supply Voltage 530V
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Termination Style Screw Terminal
Depth 10mm
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series DRA
Published 2009
Packaging Bulk
Physical
Package / Case Module
Mounting Type DIN Rail
Mount DIN Rail, Panel
Supply Chain
Factory Lead Time 6 Weeks
