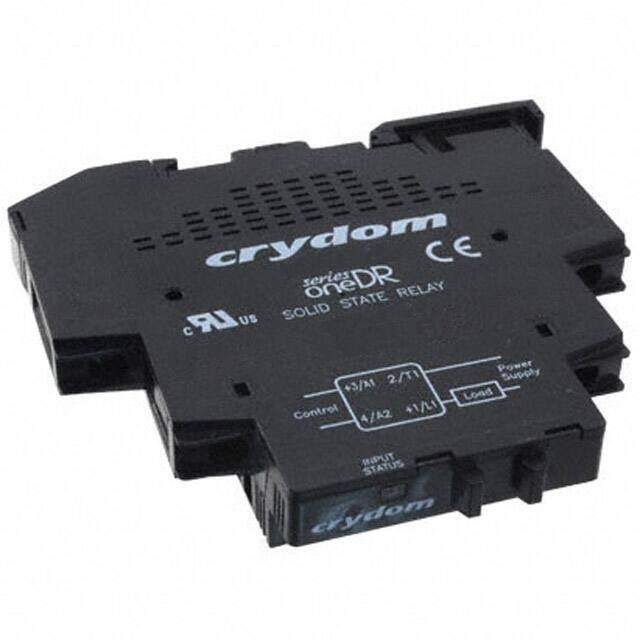

DR24E03
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description
SSR RELAY SPST-NO 3A 24-280V
PDF
/
Buying Options
Total Price: USD $99.63
Unit Price: USD $99.629876
≥1 USD $99.629876
≥10 USD $93.99046
≥100 USD $88.67024
≥500 USD $83.651168
≥1000 USD $78.91619
Inventory: 4866
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case Module
Number of Pins 4
Technical
Packaging Bulk
Published 2013
Series DR
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Depth 11mm
Current Rating 3A
Termination Style Screw Terminal
Output Voltage 280V
Output Type AC, Zero Cross
Circuit SPST-NO (1 Form A)
Max Supply Voltage 280V
Min Supply Voltage 24V
Max Voltage Rating (AC) 280V
Voltage - Input 18V~36VAC
Throw Configuration SPST
Voltage - Load 24V~280V
Max Input Current 8mA
Input Current 8mA
Load Current 3A
Max Supply Voltage (AC) 280V
Min Supply Voltage (AC) 24V
Dimensions
Height 83.7mm
Length 87.6mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
