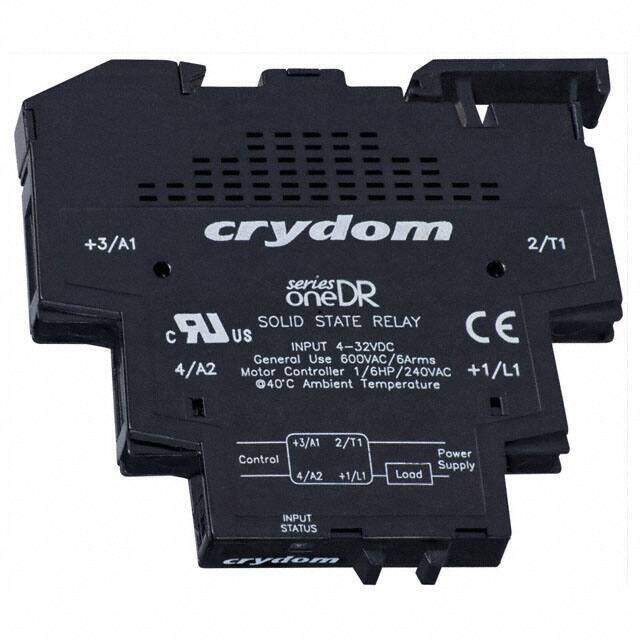

DR24B06 image
Favorite
DR24B06 image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category Relays / Solid State Relays
Description Lead Free AC Zero Cross RoHS Compliant Active Solid State Relay 20ms 80C 90V~140VAC 90.3mm
PDF
/
Buying Options
Total Price: USD $57.13
Unit Price: USD $57.1296
≥1 USD $57.1296
≥10 USD $54.4104
≥100 USD $51.937952
≥500 USD $50.4064
Inventory: 20
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Mount DIN Rail
Mounting Type DIN Rail
Package / Case Module
Number of Pins 4

Technical

Packaging Bulk
Series DR
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Depth 11mm
Current Rating 6A
Termination Style Screw Terminal
Voltage - Rated AC 280V
Output Voltage 280V
Output Type AC, Zero Cross
Circuit SPST-NO (1 Form A)
Max Supply Voltage 280V
Min Supply Voltage 24V
Max Voltage Rating (AC) 140V
Voltage - Input 90V~140VAC
Throw Configuration SPST
Turn On Delay Time 20 ms
Max Output Voltage 280V
Max Surge Current 300A
Relay Type Relay
Voltage - Load 24V~280V
Max Input Current 5mA
Input Current 5mA
Load Current 6A
Isolation Voltage 4kV
Max Supply Voltage (AC) 280V
Min Supply Voltage (AC) 24V

Dimensions

Height 90.3mm
Length 83.7mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
