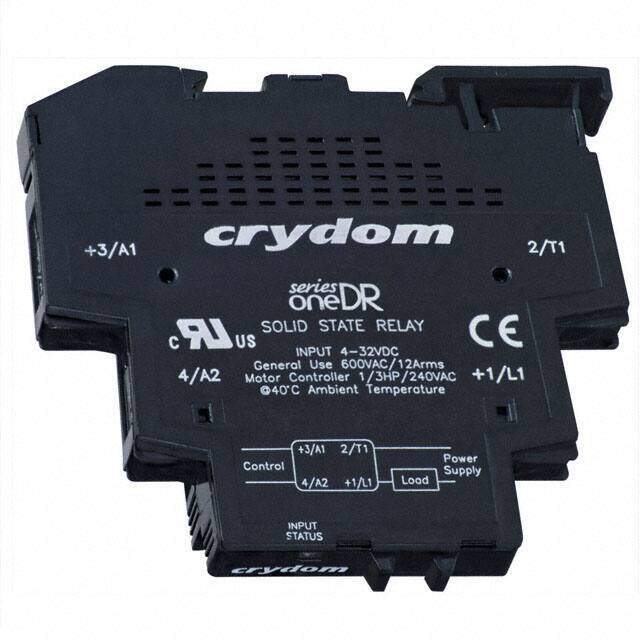

DR24A12
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description
Lead Free AC Zero Cross RoHS Compliant Active Solid State Relay 20ms 80C 208V~265VAC 90.3mm
PDF
/
Inventory: 4798
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount DIN Rail, Panel
Mounting Type DIN Rail
Package / Case Module
Number of Pins 4
Technical
Packaging Bulk
Series DR
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Depth 18mm
Current Rating 12A
Termination Style Screw Terminal
Voltage - Rated AC 280V
Output Voltage 280V
Output Type AC, Zero Cross
Circuit SPST-NO (1 Form A)
Max Voltage Rating (AC) 280V
Voltage - Input 208V~265VAC
Throw Configuration SPST
Turn On Delay Time 20 ms
Max Output Voltage 280V
Max Surge Current 750A
Relay Type Relay
Voltage - Load 24V~280V
Max Input Current 3.3mA
Input Current 3.3mA
Load Current 12A
Isolation Voltage 4kV
Max Supply Voltage (AC) 280V
Min Supply Voltage (AC) 24V
Dimensions
Height 90.3mm
Length 83.7mm
Width 18mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
