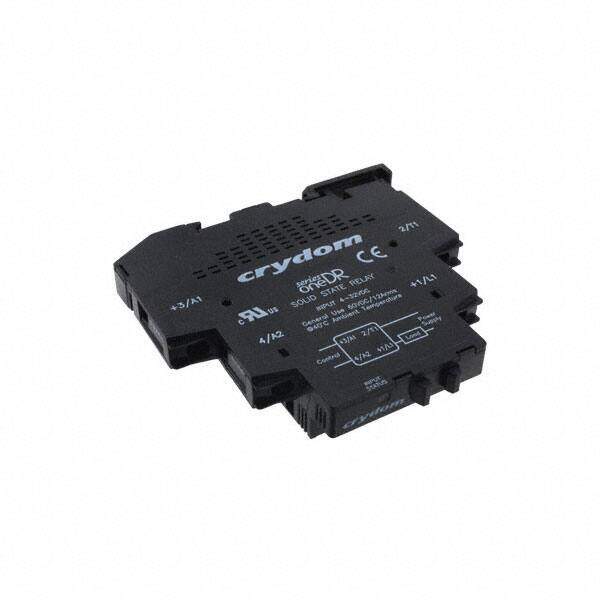

DR06D12
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description
Lead Free DC RoHS Compliant Active Solid State Relay 80C 4V~32VDC 87.6mm 12A
PDF
/
Buying Options
Total Price: USD $72.1
Unit Price: USD $72.0984
≥1 USD $72.0984
≥10 USD $68.6664
≥100 USD $65.542752
≥500 USD $63.615376
Inventory: 273
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount DIN Rail, Panel
Mounting Type DIN Rail
Package / Case Module
Number of Pins 4
Technical
Packaging Bulk
Published 2009
Series DR
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Resistance 100mOhm
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Voltage - Rated DC 60V
Depth 18mm
Current Rating 12A
Termination Style Screw Terminal
Output Voltage 60V
Output Type DC
Max Output Current 12A
Operating Supply Voltage 60V
Circuit SPST-NO (1 Form A)
Voltage - Input 4V~32VDC
Output Current 12A
Throw Configuration SPST
Max Voltage Rating (DC) 60V
Max Output Voltage 60V
Max Surge Current 100A
Relay Type Relay
Voltage - Load 1V~60V
On-State Resistance (Max) 100mOhms
Max Input Current 11mA
Input Current 11mA
Load Current 12A
Max Supply Voltage (DC) 60V
Isolation Voltage 4kV
Min Supply Voltage (DC) 1V
Dimensions
Height 87.6mm
Length 83.7mm
Width 18mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
