DR06D06
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description

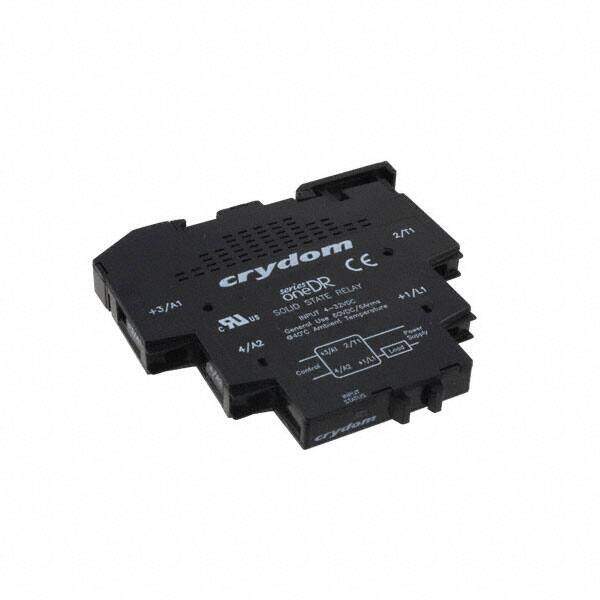

CRYDOM DR06D06Solid State Relay, 6 A, DIN Rail, Screw, 1 VDC, 60 VDC
PDF
/
Inventory: 9393
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 11mm
Length 83.7mm
Height 87.6mm
Technical
Switching Current 6A
Min Supply Voltage (DC) 1V
Isolation Voltage 4kV
Max Supply Voltage (DC) 60V
Load Current 6A
Input Current 11mA
Max Input Current 11mA
On-State Resistance (Max) 100mOhms
Voltage - Load 1V~60V
Relay Type Relay
Max Surge Current 60A
Max Output Voltage 60V
Max Voltage Rating (DC) 60V
Throw Configuration SPST
Output Current 6A
Voltage - Input 4V~32VDC
Circuit SPST-NO (1 Form A)
Operating Supply Voltage 60V
Max Output Current 6A
Output Type DC
Output Voltage 60V
Termination Style Screw Terminal
Current Rating 6A
Depth 11mm
Voltage - Rated DC 60V
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Resistance 100mOhm
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series DR
Published 2010
Packaging Bulk
Physical
Number of Pins 4
Package / Case Module
Mounting Type DIN Rail
Mount DIN Rail, Panel
Supply Chain
Factory Lead Time 5 Weeks
