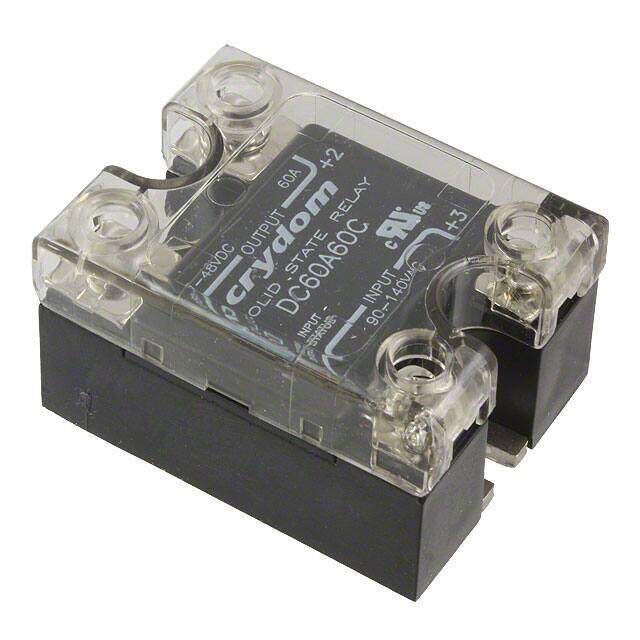

DC60A60C
RoHS
/
Package Hockey Puck
Category Relays / Solid State Relays
Description
RELAY SSR 60VDC/60A 90-140VAC
PDF
/
Buying Options
Total Price: USD $291.82
Unit Price: USD $291.823535
≥1 USD $291.823535
≥200 USD $116.439788
≥500 USD $112.548353
≥1000 USD $110.626267
Inventory: 7115
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Length 58.2mm
Height 32.9mm
Technical
Min Supply Voltage (DC) 7V
Max Supply Voltage (DC) 48V
Load Current 60A
On-State Resistance (Max) 8.5mOhms
Voltage - Load 1V~48V
Relay Type Relay
Turn On Delay Time 10 ms
Throw Configuration SPST
Voltage - Input 90V~140VAC
Min Supply Voltage 7V
Max Supply Voltage 48V
Circuit SPST-NO (1 Form A)
Operating Supply Voltage 48V
Output Type DC
Approval Agency CE, UL
Termination Style Screw Terminal
Current Rating 60A
Depth 44.5mm
Voltage - Rated DC 60V
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Resistance 8.5mOhm
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series PowerPlus DC
Published 2011
Packaging Bulk
Physical
Number of Pins 4
Package / Case Hockey Puck
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Surface Mount
