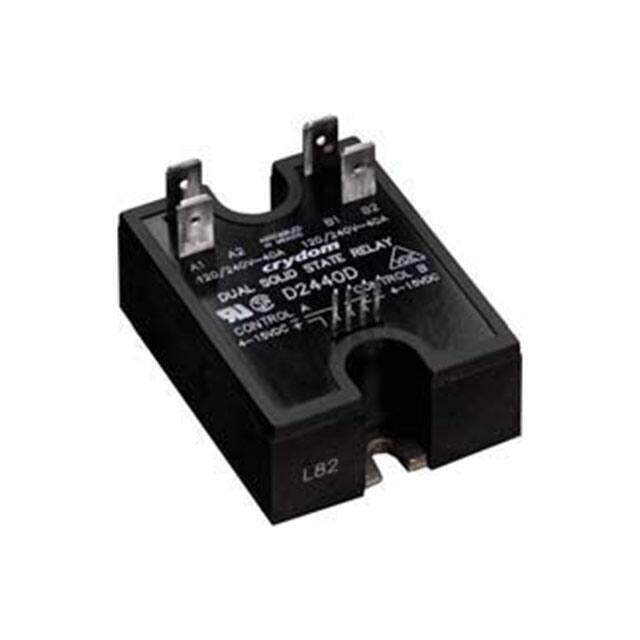

D2440D  image
Favorite
D2440D  image
Favorite
RoHS
RoHS RoHS compliant
Package Hockey Puck
Category Relays / Solid State Relays
Description SSR RELAY SPST-NO 40A 24-280V
PDF
/
Buying Options
Total Price: USD $106.28
Unit Price: USD $106.2776
≥1 USD $106.2776
≥10 USD $101.2176
≥100 USD $96.615376
Inventory: 69
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Chassis Mount, Panel, Screw, Surface Mount
Mounting Type Chassis Mount
Package / Case Hockey Puck
Number of Pins 8

Technical

Packaging Bulk
Published 2002
Series 1
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Resistance 310Ohm
Max Operating Temperature 80°C
Min Operating Temperature -40°C
Depth 58.4mm
Current Rating 40A
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 280V
Approval Agency CE, CSA, UL, VDE
Output Voltage 280V
Output Type AC, Zero Cross
Max Output Current 40A
Operating Supply Voltage 280V
Circuit SPST-NO (1 Form A) x 2
Voltage - Input 4V~15VDC
Output Current 40A
Throw Configuration DPST, SPST
Max Output Voltage 280V
Max Input Voltage 15V
Relay Type Relay
Voltage - Load 24V~280V
Max Input Current 13mA
Input Current 13mA
Load Current 40A
Isolation Voltage 4kV
Max Supply Voltage (AC) 280V
Min Supply Voltage (AC) 24V

Dimensions

Height 21.6mm
Length 45.7mm
Width 33.3mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
