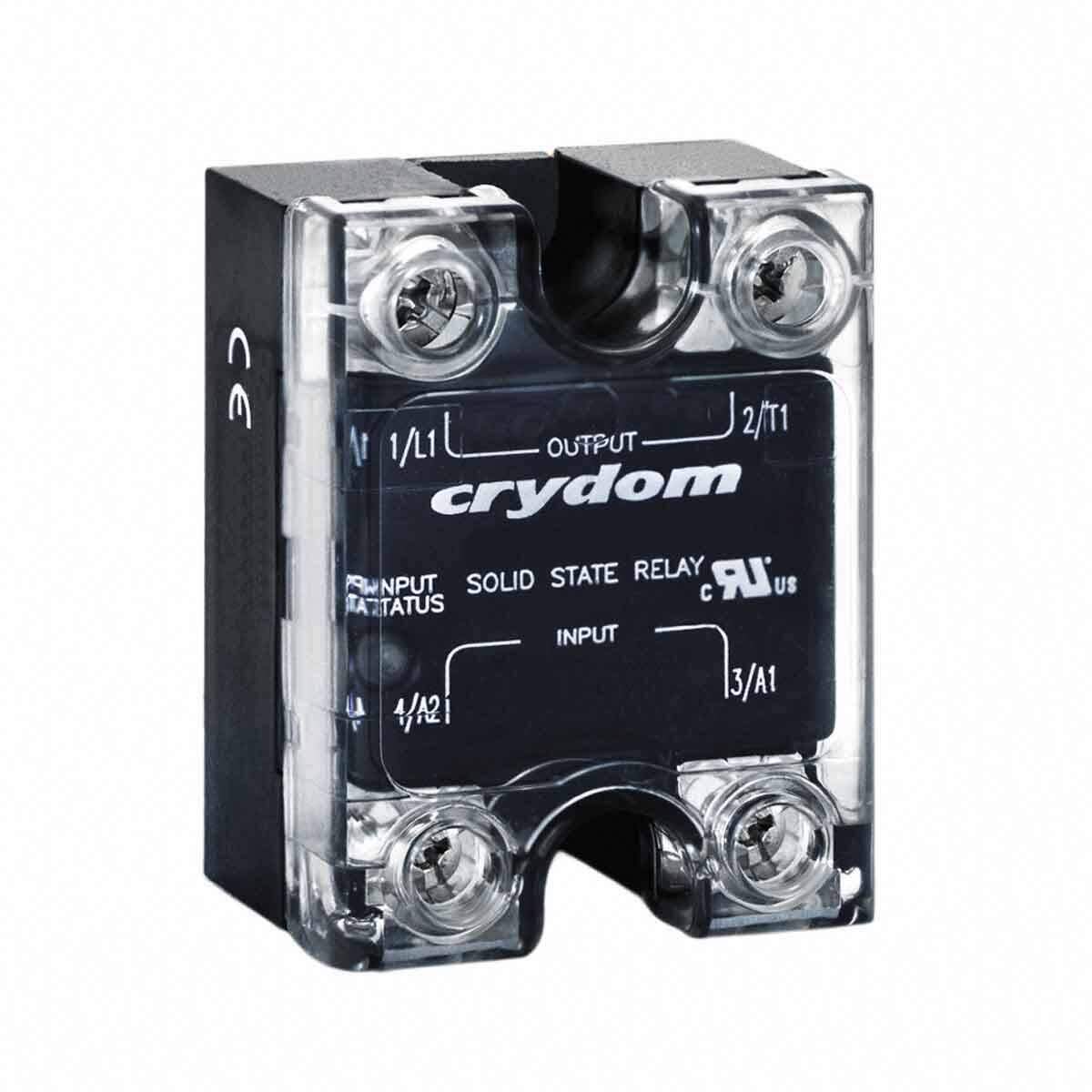

CWU2425P image
Favorite
CWU2425P image
Favorite

CWU2425P

Sensata-Crydom
RoHS
RoHS RoHS compliant
Package Hockey Puck
Category Relays / Solid State Relays
Description SSR RELAY SPST-NO 25A 24-280V
PDF
/
Buying Options
Total Price: USD $55.48
Unit Price: USD $55.484
≥1 USD $55.484
≥10 USD $52.844
≥100 USD $50.441952
≥500 USD $48.954576
Inventory: 74
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Mount Panel, Screw
Mounting Type Chassis Mount
Package / Case Hockey Puck
Number of Pins 4

Technical

Packaging Bulk
Published 2015
Series CW24
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Max Operating Temperature 80°C
Min Operating Temperature -40°C
Depth 33mm
Current Rating 25A
Termination Style Screw Terminal
Output Type AC, Zero Cross
Circuit SPST-NO (1 Form A)
Max Voltage Rating (AC) 280V
Voltage - Input 20V~280VAC 20V~48VDC
Max Voltage Rating (DC) 48V
Turn On Delay Time 17 ms
Voltage - Load 24V~280V
Max Supply Voltage (AC) 280V
Min Supply Voltage (AC) 24V

Dimensions

Height 58.4mm
Length 45.7mm

Compliance

REACH SVHC No SVHC
RoHS Status RoHS Compliant
