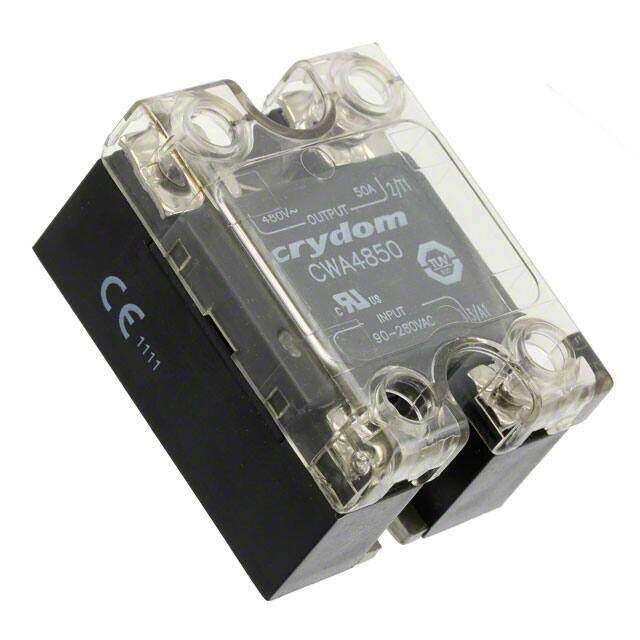

CWA4850
RoHS
RoHS compliant
RoHS compliantPackage Hockey Puck
Category Relays / Solid State Relays
Description
Solid State Relays - Industrial Mount 0.15-50A AC CONTROL
PDF
/
Buying Options
Total Price: USD $81.68
Unit Price: USD $81.6816
≥1 USD $81.6816
≥10 USD $77.792
≥100 USD $74.254752
≥500 USD $72.072088
Inventory: 84
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Silver
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Package / Case Hockey Puck
Number of Pins 4
Technical
Packaging Bulk
Published 2005
Series CW48
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Max Operating Temperature 80°C
Min Operating Temperature -40°C
Depth 58.4mm
Current Rating 50A
Termination Style Screw Terminal
Voltage - Rated AC 660V
Approval Agency CE, CSA, UL, VDE
Output Voltage 660V
Output Type AC, Zero Cross
Operating Supply Voltage 660V
Circuit SPST-NO (1 Form A)
Insulation Resistance 1GOhm
Leakage Current 1mA
Max Supply Voltage 660V
Min Supply Voltage 48V
Voltage - Input 90V~280VAC
Output Current 50A
Throw Configuration SPST
Max Output Voltage 660V
Max Surge Current 850A
Relay Type Relay
Voltage - Load 48V~660V
RMS Current (Irms) 50A
Input Current 24mA
Load Current 50A
Isolation Voltage 4kV
Dimensions
Height 33mm
Length 45.7mm
Width 45.7mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
