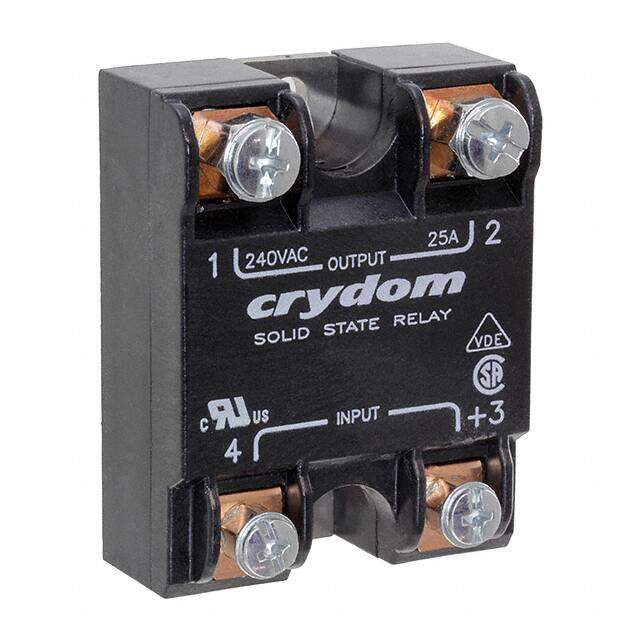

CWA2425 image
Favorite
CWA2425 image
Favorite
RoHS
RoHS RoHS compliant
Package Hockey Puck
Category Relays / Solid State Relays
Description SSR RELAY SPST-NO 25A 24-280V
PDF
/
Buying Options
Total Price: USD $56.45
Unit Price: USD $56.452
≥1 USD $56.452
≥10 USD $53.768
≥100 USD $51.321776
≥500 USD $49.808264
Inventory: 76
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 45.7mm
Length 45.7mm
Height 33mm

Technical

Isolation Voltage 4kV
Load Current 25A
Input Current 6mA
RMS Current (Irms) 25A
Voltage - Load 24V~280V
Relay Type Relay
Max Surge Current 600A
Max Output Voltage 280V
Throw Configuration SPST
Output Current 25A
Voltage - Input 90V~280VAC
Min Supply Voltage 24V
Max Supply Voltage 280V
Leakage Current 1mA
Insulation Resistance 1GOhm
Circuit SPST-NO (1 Form A)
Operating Supply Voltage 280V
Output Type AC, Zero Cross
Output Voltage 280V
Approval Agency CE, CSA, UL, VDE
Voltage - Rated AC 280V
Termination Style Screw Terminal
Current Rating 25A
Depth 58.4mm
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series CW24
Published 2008
Packaging Bulk

Physical

Number of Pins 4
Package / Case Hockey Puck
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Contact Material Silver

Supply Chain

Factory Lead Time 5 Weeks
