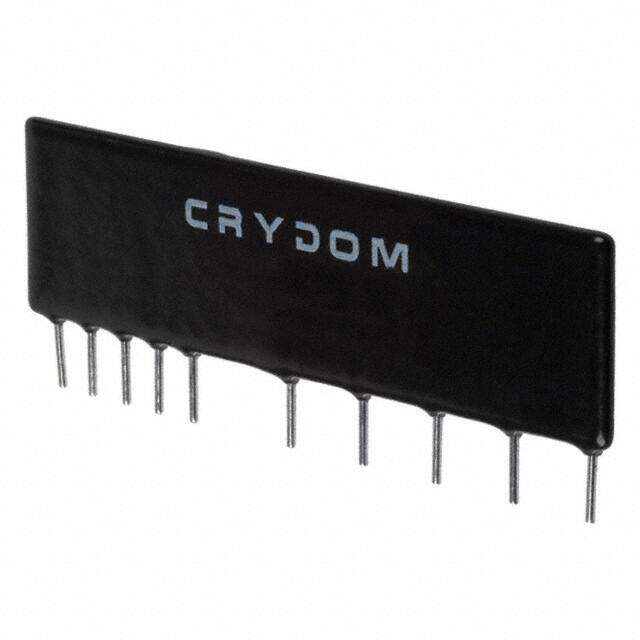

CTX240D3Q

Sensata-Crydom
RoHS
/
Package 10-SIP
Category Relays / Solid State Relays
Description SSR RELAY SPST-NO 2.5A 24-280V
PDF
/
Inventory: 5668
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 10-SIP
Number of Pins 10
Supplier Device Package 10-SIP

Technical

Packaging Bulk
Published 2008
Series CTX
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pin
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Capacitance 10pF
Depth 6.4mm
Termination Style PC Pin
Output Type AC, Zero Cross
Circuit SPST-NO (1 Form A) x 4
Voltage - Input 4V~10VDC
Output Current 6A
Throw Configuration 4PST
Max Output Voltage 280V
Relay Type Relay
Voltage - Load 24V~280V
Input Current 15mA
Load Current 2.5A
Isolation Voltage 2.5kV

Dimensions

Height 25.4mm
Length 83.8mm
Width 6.35mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
