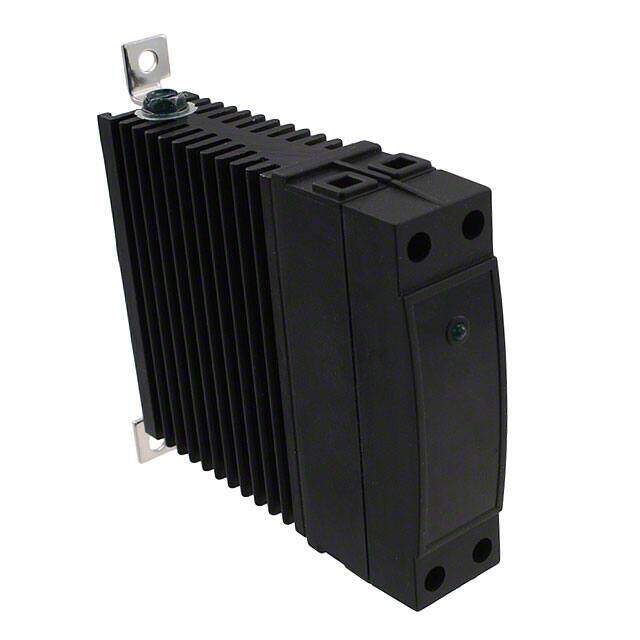

CKRD4820
RoHS
RoHS compliant
RoHS compliantPackage SSR with Integrated Heat Sink
Category Relays / Solid State Relays
Description
RELAY SSR SPST 20A@530VAC DIN MT
PDF
/
Buying Options
Total Price: USD $88.73
Unit Price: USD $88.7304
≥1 USD $88.7304
≥10 USD $84.5064
≥100 USD $80.670128
≥500 USD $78.294128
Inventory: 83
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 22.4mm
Length 81.9mm
Height 99mm
Technical
Isolation Voltage 4kV
Load Current 20A
Input Current 12mA
Voltage - Load 48V~530V
Relay Type Relay
Max Output Voltage 530V
Max Voltage Rating (DC) 32V
Throw Configuration SPST
Output Current 20A
Voltage - Input 4V~32VDC
Max Voltage Rating (AC) 280V
Circuit SPST-NO (1 Form A)
Operating Supply Voltage 530V
Output Type AC, Zero Cross
Approval Agency CE, CSA, UL, VDE
Voltage - Rated AC 530V
Termination Style Screw Terminal
Current Rating 20A
Depth 22.5mm
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series CKR48
Published 2011
Packaging Bulk
Physical
Number of Pins 4
Package / Case SSR with Integrated Heat Sink
Mounting Type DIN Rail
Mount DIN Rail, Panel
Supply Chain
Factory Lead Time 6 Weeks
