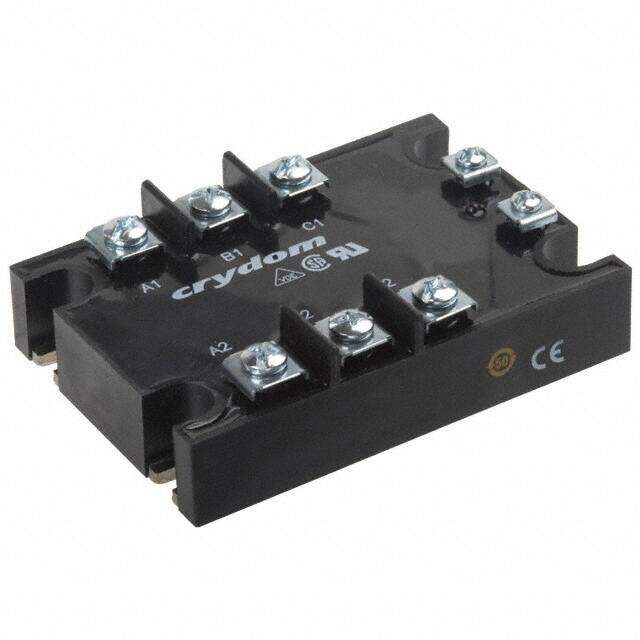

C53TP50CH
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description
Relay SSR 20mA 280V AC-IN 50A 530V AC-OUT 8-Pin
PDF
/
Buying Options
Total Price: USD $653.65
Unit Price: USD $653.649584
≥1 USD $653.649584
≥200 USD $260.810211
≥500 USD $252.095181
≥1000 USD $247.788869
Inventory: 4498
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Isolation Voltage 4kV
Load Current 50A
Input Current 20mA
Max Input Current 20mA
Voltage - Load 48V~530V
Relay Type Relay
Max Output Voltage 530V
Throw Configuration 3PST
Voltage - Input 180V~280VAC
Circuit 3PST-NO (3 Form A)
Output Type AC, Zero Cross
Termination Style Screw Terminal
Current Rating 50A
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Termination Screw
Part Status Active
Series 53TP
Packaging Tube
Physical
Number of Pins 8
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 6 Weeks
