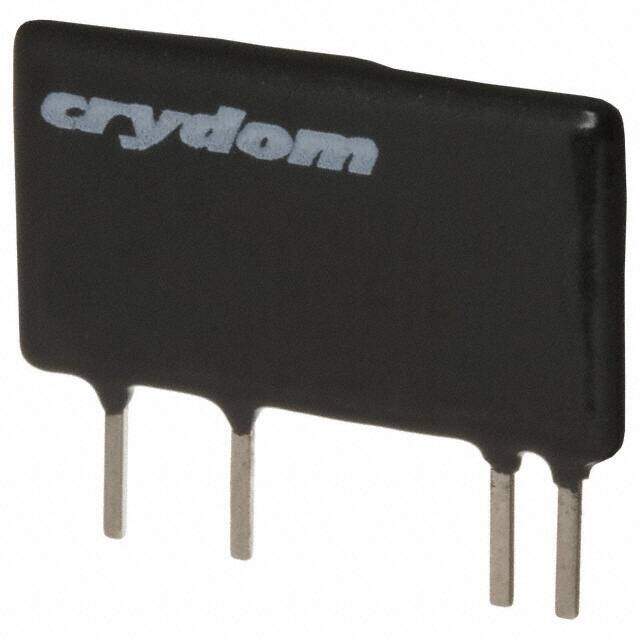

ASO242R
RoHS
RoHS compliant
RoHS compliantPackage 4-SIP
Category Relays / Solid State Relays
Description
CRYDOM ASO242R Solid State Relay, ASO Series, Mini SIP, SPST-NO, 2 A, PCB, Through Hole, 24 Vrms, 280 Vrms
PDF
/
Buying Options
Total Price: USD $16.57
Unit Price: USD $16.573191
≥1 USD $16.573191
≥10 USD $15.635082
≥100 USD $14.750079
≥500 USD $13.915162
≥1000 USD $13.127516
Inventory: 1368
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 12.7mm
Length 24.1mm
Height 12.7mm
Technical
Isolation Voltage 2.5kV
Input Current 15mA
Voltage - Load 12V~280V
Relay Type Relay
Max Surge Current 120A
Max Output Voltage 280V
Throw Configuration SPST
Output Current 2A
Voltage - Input 4V~10VDC
Circuit SPST-NO (1 Form A)
Operating Supply Voltage 280V
Output Type AC
Output Voltage 280V
Approval Agency CE, CSA, UL
Termination Style PC Pin
Current Rating 2A
Depth 5.1mm
Capacitance 8pF
Voltage - Rated 280V
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Termination PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series ASO
Published 2011
Packaging Bulk
Physical
Number of Pins 4
Package / Case 4-SIP
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 5 Weeks
