2902970
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description

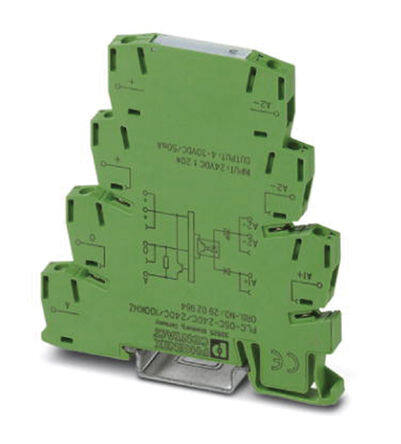

DIN Rail Interface Relay Module Push In, 50mA 19.228.8V dc
PDF
/
Inventory: 1154
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 6.2mm
Height 80mm
Technical
Load Current 50mA
Input Current 6mA
Voltage - Load 4V~30V
Turn-Off Delay Time 2 μs
Max Input Voltage 28.8V
Min Input Voltage 19.2V
Turn On Delay Time 1.5 μs
Voltage - Input 24VDC
Circuit SPST-NO (1 Form A)
Output Type DC
Termination Style Spring Terminal
Depth 86mm
Min Operating Temperature -20°C
Max Operating Temperature 60°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PLC-OPT
Published 2015
Packaging Bulk
Physical
Package / Case Module
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
