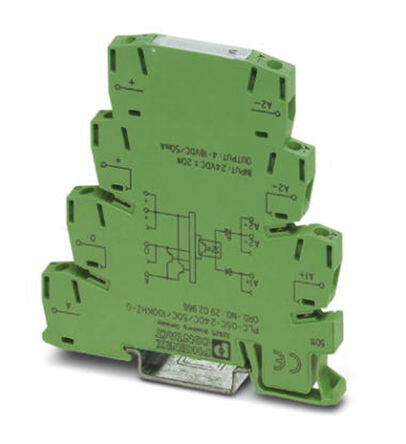

2902966 image
Favorite
2902966 image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category Relays / Solid State Relays
Description DIN Rail Interface Relay Module Screw, 50mA 19.228.8V dc
PDF
/
Inventory: 1597
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Length 6.2mm
Height 80mm

Technical

Load Current 50mA
Input Current 8mA
Voltage - Load 4V~18V
Turn-Off Delay Time 2 μs
Max Input Voltage 28.8V
Min Input Voltage 19.2V
Turn On Delay Time 1 μs
Voltage - Input 24VDC
Circuit SPST-NO (1 Form A)
Output Type DC
Termination Style Screw Terminal
Depth 86mm
Min Operating Temperature -20°C
Max Operating Temperature 60°C
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PLC-OSC
Published 2015
Packaging Bulk

Physical

Package / Case Module
Mounting Type DIN Rail
Mount DIN Rail

Supply Chain

Factory Lead Time 4 Weeks
