AQV214EHAX
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD (0.300, 7.62mm)
Category Relays / Solid State Relays
Description
PANASONIC EW AQV214EHAX PHOTOMOS RELAY, 350V, 130mA
PDF
/
Buying Options
Total Price: USD $1.86
Unit Price: USD $1.8568
≥1 USD $1.8568
≥10 USD $1.73976
≥100 USD $1.546688
≥500 USD $1.469248
≥1000 USD $1.391896
≥3000 USD $1.23721
Inventory: 1183
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD (0.300, 7.62mm)
Number of Pins 6
Technical
Packaging Tape & Reel (TR)
Published 2004
Series PhotoMOS? AQV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Gull Wing
Resistance 50Ohm
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Additional Feature UL RECOGNIZED
HTS Code 8541.40.95.00
Termination Style Gull Wing
Output Voltage 400V
Output Type AC, DC
Max Output Current 120mA
Number of Elements 1
Circuit SPST-NO (1 Form A)
Voltage - Input 1.14VDC
Output Current 120mA
Throw Configuration SPST
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Forward Current 1.6mA
Max Output Voltage 400V
Rise Time 700μs
Relay Type Relay
Voltage - Load 0V~400V
On-State Resistance (Max) 50Ohm
Max Input Current 50mA
Input Current 50mA
On-State Current-Max 0.12A
Isolation Voltage 5kV
Test Voltage 1.5kV
Dimensions
Height 3.6mm
Length 8.8mm
Width 6.4mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free

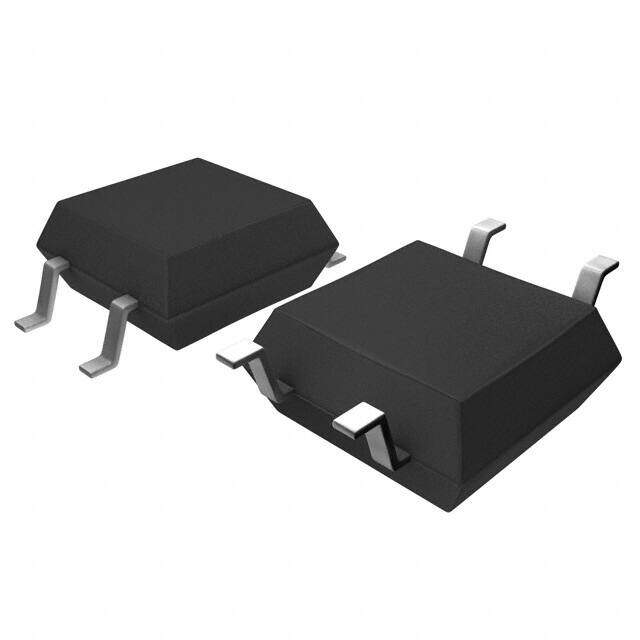

Alternative Model
