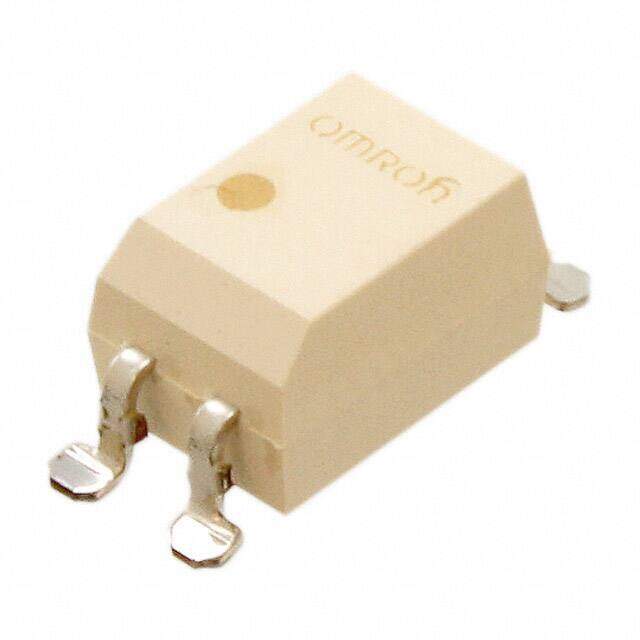

G3VM-61DR image
Favorite
G3VM-61DR image
Favorite
RoHS
RoHS RoHS compliant
Package 4-SMD (0.300, 7.62mm)
Category Relays / Solid State Relays
Description Relay SSR 25mA 1.48V DC-IN 2A 48V AC/DC-OUT 4-Pin DIP SMD Stick
PDF
/
Buying Options
Total Price: USD $10.5
Unit Price: USD $10.4984
≥1 USD $10.4984
≥10 USD $9.83928
≥100 USD $8.746496
≥500 USD $8.30896
≥1000 USD $7.871688
≥3000 USD $6.997056
Inventory: 824
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 4.58mm
Length 6.4mm
Height 3.65mm

Technical

Isolation Voltage 2.5kV
Load Current 2A
On-State Current-Max 2A
On-State Resistance (Max) 200mOhm
Voltage - Load 0V~60V
Relay Type Relay
Forward Current 30mA
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Throw Configuration SPST
Voltage - Input 1.33VDC
Circuit SPST-NO (1 Form A)
Number of Elements 1
Output Type AC, DC
Termination Style Gull Wing
Reach Compliance Code unknown
HTS Code 8541.40.95.00
Additional Feature UL RECOGNIZED
Min Operating Temperature -20°C
Max Operating Temperature 65°C
Resistance 200mOhm
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series G3VM
Published 2001
Packaging Tube

Physical

Weight 249.986095mg
Package / Case 4-SMD (0.300, 7.62mm)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 7 Weeks
