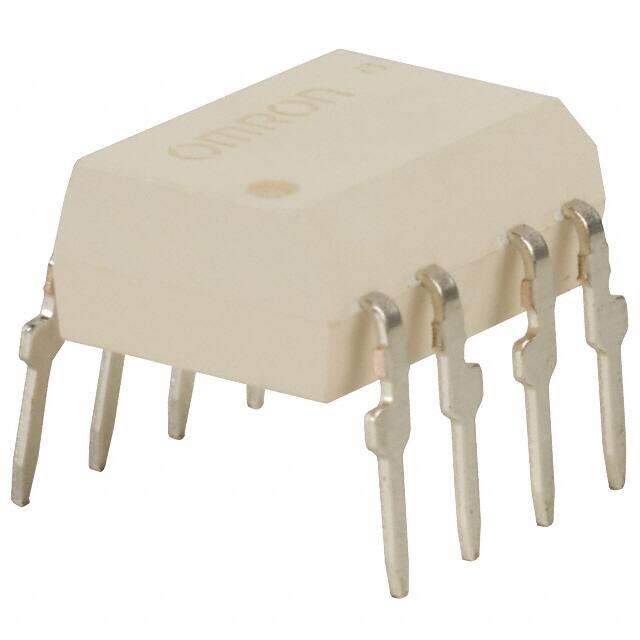

G3VM-61CR
RoHS
/
Package 8-DIP (0.300, 7.62mm), 6 Leads
Category Relays / Solid State Relays
Description
SSR RELAY SPST-NO 2A 0-60V
PDF
/
Inventory: 7034
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP (0.300, 7.62mm), 6 Leads
Number of Pins 8
Technical
Packaging Tube
Published 2004
Series G3VM
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Resistance 120mOhm
Additional Feature UL RECOGNIZED
Termination Style PC Pin
Operating Temperature (Max) 50°C
Operating Temperature (Min) 25°C
Output Voltage 60V
Output Type AC, DC
Max Output Current 2A
Number of Elements 1
Circuit SPST-NO (1 Form A)
Voltage - Input 1.2VDC
Output Current 2A
Throw Configuration SPST
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Max Output Voltage 60V
Max Input Voltage 1.4V
Relay Type Relay
Voltage - Load 0V~60V
Forward Current-Max 0.03A
On-State Resistance (Max) 120mOhm
Max Input Current 50mA
Input Current 50mA
On-State Current-Max 2A
Isolation Voltage-Max 1500V
Dimensions
Height 3.65mm
Length 9.66mm
Width 6.4mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
