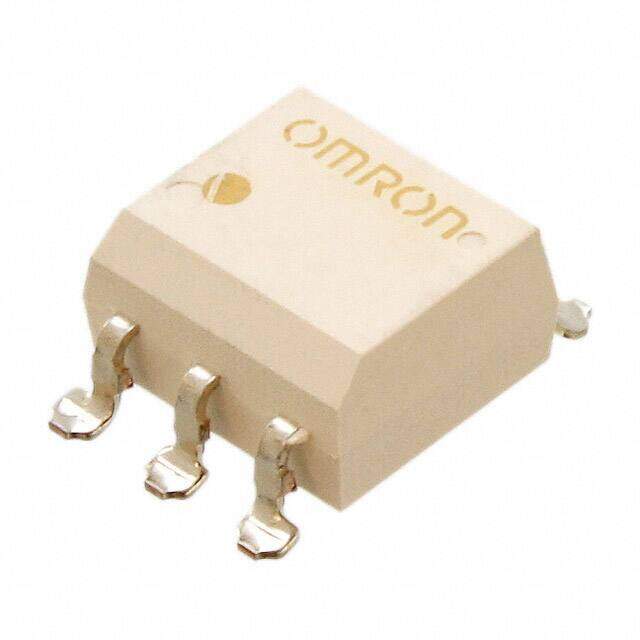

G3VM-41ER image
Favorite
G3VM-41ER image
Favorite
RoHS
RoHS RoHS compliant
Package 6-SMD (0.300, 7.62mm)
Category Relays / Solid State Relays
Description Solid State Relays - PCB Mount 40V SPST-NO DIP6 SMT 3500mA 30ohm 1000pF
PDF
/
Buying Options
Total Price: USD $10.11
Unit Price: USD $10.1112
≥1 USD $10.1112
≥10 USD $8.98832
≥100 USD $8.538816
≥500 USD $8.089488
≥1000 USD $7.639984
≥3000 USD $6.965904
Inventory: 1248
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD (0.300, 7.62mm)
Number of Pins 6
Weight 249.986095mg

Technical

Packaging Tube
Published 2001
Series G3VM
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Gull Wing
Resistance 60mOhm
Max Operating Temperature 65°C
Min Operating Temperature -20°C
Additional Feature UL RECOGNIZED
Reach Compliance Code unknown
Termination Style Gull Wing
Number of Contacts 1
Output Voltage 40V
Output Type AC, DC
Max Output Current 3.5A
Number of Elements 1
Circuit SPST-NO (1 Form A)
Voltage - Input 1.33VDC
Output Current 3.5A
Throw Configuration SPST
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Forward Current 30mA
Max Output Voltage 32V
Relay Type Relay
Voltage - Load 0V~40V
On-State Resistance (Max) 60mOhm
Max Input Current 25mA
Input Current 10mA
Isolation Voltage 2.5kV
Max Junction Temperature (Tj) 125°C
Ambient Temperature Range High 65°C
On-State Resistance 30mOhm

Dimensions

Height 4.25mm
Length 7.12mm
Width 6.4mm

Compliance

RoHS Status RoHS Compliant
