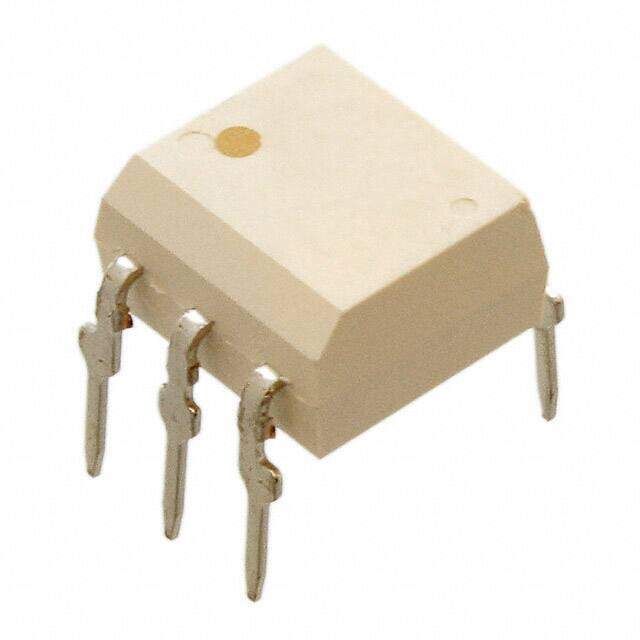

G3VM-21BR image
Favorite
G3VM-21BR image
Favorite
RoHS
RoHS RoHS compliant
Package 6-DIP (0.300, 7.62mm)
Category Relays / Solid State Relays
Description Solid State Relays - PCB Mount 20V SPST-NO DIP6 PCB 4000mA 20ohm 1000pF
PDF
/
Buying Options
Total Price: USD $10.44
Unit Price: USD $10.4368
≥1 USD $10.4368
≥10 USD $9.78648
≥100 USD $8.699328
≥500 USD $8.264256
≥1000 USD $7.829272
≥3000 USD $6.959392
Inventory: 162
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 6.4mm
Length 7.12mm
Height 3.65mm

Technical

Load Current 4A
On-State Resistance (Max) 50mOhm
Voltage - Load 0V~20V
Relay Type Relay
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Throw Configuration SPST
Voltage - Input 1.33VDC
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Termination Style PC Pin
Reach Compliance Code unknown
HTS Code 8541.40.95.00
Min Operating Temperature -20°C
Max Operating Temperature 65°C
Resistance 50mOhm
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series G3VM
Published 2001
Packaging Tube

Physical

Weight 249.986095mg
Number of Pins 6
Package / Case 6-DIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 3 Weeks
