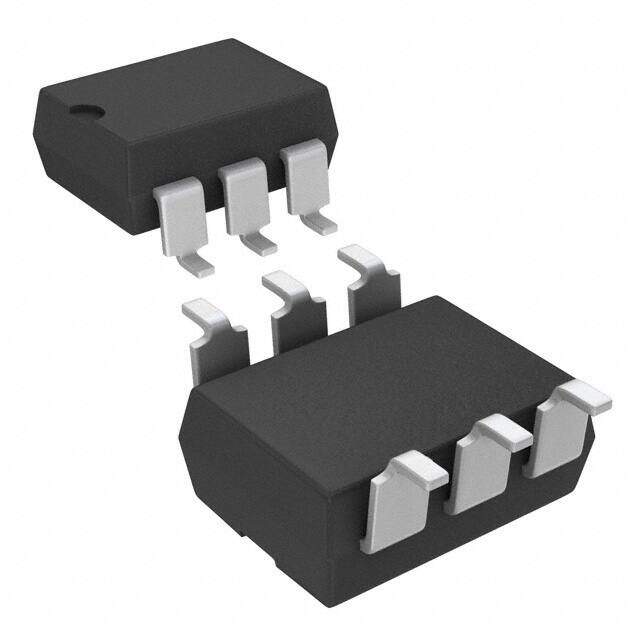

CPC1510GS
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD (0.300, 7.62mm)
Category Relays / Solid State Relays
Description
SSR RELAY SPST-NO 200MA 0-250V
PDF
/
Buying Options
Total Price: USD $32.22
Unit Price: USD $32.21735
≥1 USD $32.21735
≥10 USD $26.43565
≥100 USD $25.60915
≥500 USD $24.78265
≥1000 USD $23.9571
≥3000 USD $21.47855
Inventory: 4037
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 6.35mm
Length 8.382mm
Height 3.302mm
Technical
Isolation Voltage 3.75kV
Load Current 200mA
Input Current 50mA
On-State Resistance (Max) 15Ohms
Voltage - Load 0V~250V
Relay Type Relay
Max Output Voltage 250V
Throw Configuration SPST
Output Current 200mA
Voltage - Input 1.37VDC
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Output Voltage 250V
Termination Style Gull Wing
Max Power Dissipation 800mW
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 15Ohm
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CPC, OptoMOS?
Published 2005
Packaging Tube
Physical
Supplier Device Package 6-SMD
Number of Pins 6
Package / Case 6-SMD (0.300, 7.62mm)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
