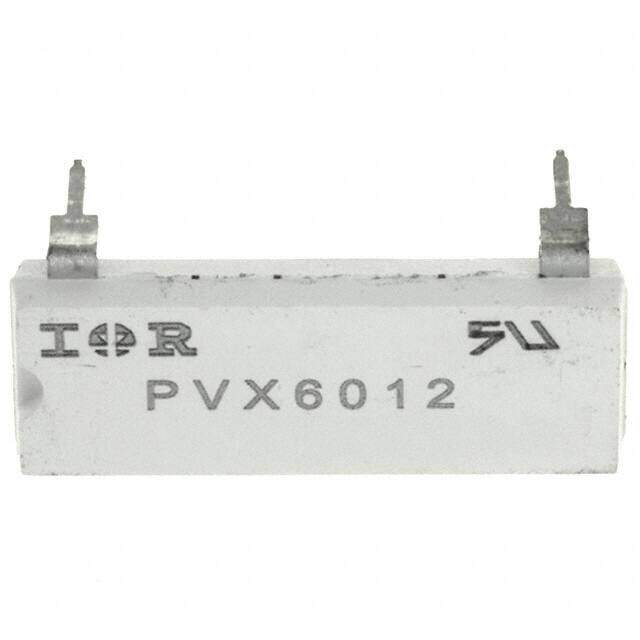

PVX6012PBF
RoHS
RoHS compliant
RoHS compliantPackage 14-DIP (0.300, 7.62mm), 4 Leads
Category Relays / Solid State Relays
Description
IC RELAY PHOTOVO 400V 1A 14-DIP
PDF
/
Buying Options
Total Price: USD $17.97
Unit Price: USD $17.9721
≥1 USD $17.9721
≥10 USD $14.74685
≥100 USD $14.2861
≥500 USD $13.82535
≥1000 USD $13.3646
Inventory: 1154
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 6.47mm
Length 19.2mm
Height 3.819mm
Technical
Ambient Temperature Range High 85°C
Isolation Voltage 3.75kV
On-State Current-Max 1A
Input Current 25mA
Max Forward Surge Current (Ifsm) 5A
Max Input Current 25mA
RMS Current (Irms) 1A
Voltage - Load 0V~280V
Fall Time (Typ) 1 ms
Relay Type Relay
Rise Time 7 ms
Max Output Voltage 600V
Forward Current 25mA
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Input Type DC
Throw Configuration SP, SPST
Number of Poles 1
Output Current 1A
Voltage - Input 1.2VDC
Max Supply Voltage 400V
Insulation Resistance 10GOhm
Circuit SPST-NO (1 Form A)
Number of Elements 1
Output Type AC, DC
Output Voltage 400V
Approval Agency UL
Termination Style PC Pin
Capacitance 50pF
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PVX, HEXFRED?
Published 2003
Packaging Tube
Physical
Number of Pins 4
Package / Case 14-DIP (0.300, 7.62mm), 4 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 16 Weeks
