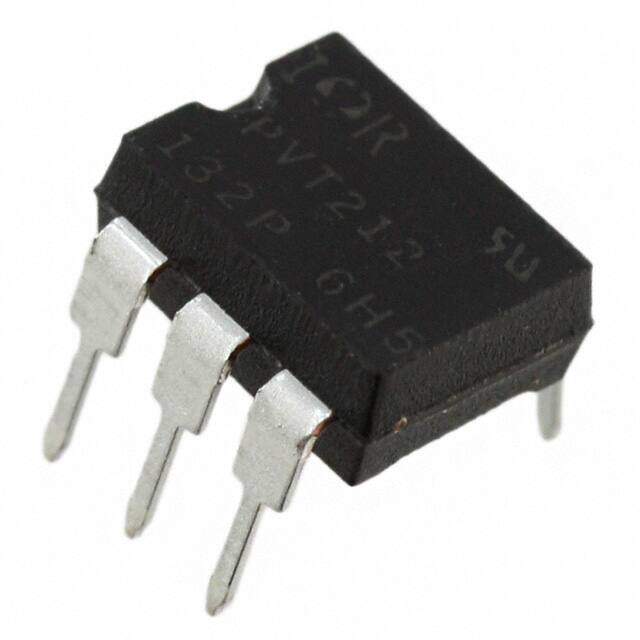

PVT212PBF
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP (0.300, 7.62mm)
Category Relays / Solid State Relays
Description
IC RELAY PHOTOVO 150V 550MA 6DIP
PDF
/
Buying Options
Total Price: USD $19.98
Unit Price: USD $19.976
≥1 USD $19.976
≥10 USD $17.754
≥100 USD $16.86608
≥500 USD $15.97816
≥1000 USD $15.090592
≥3000 USD $13.759046
Inventory: 390
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 6-DIP (0.300, 7.62mm)
Number of Pins 6
Technical
Packaging Tube
Published 2009
Series PVT, HEXFET?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Resistance 750mOhm
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8541.40.95.00
Termination Style PC Pin
Approval Agency UL
Output Voltage 150V
Output Type AC, DC
Operating Supply Voltage 150V
Number of Elements 1
Circuit SPST-NO (1 Form A)
Voltage - Input 1.2VDC
Output Current 550mA
Throw Configuration SP, SPST
Input Type DC
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Forward Current 25mA
Max Output Voltage 150V
Relay Type Relay
Voltage - Load 0V~150V
On-State Resistance (Max) 750mOhm
Max Input Current 25mA
Overall Height 3.4mm
Input Current 25mA
On-State Current-Max 0.825A
Isolation Voltage 4kV
Control Current 0.005A
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
