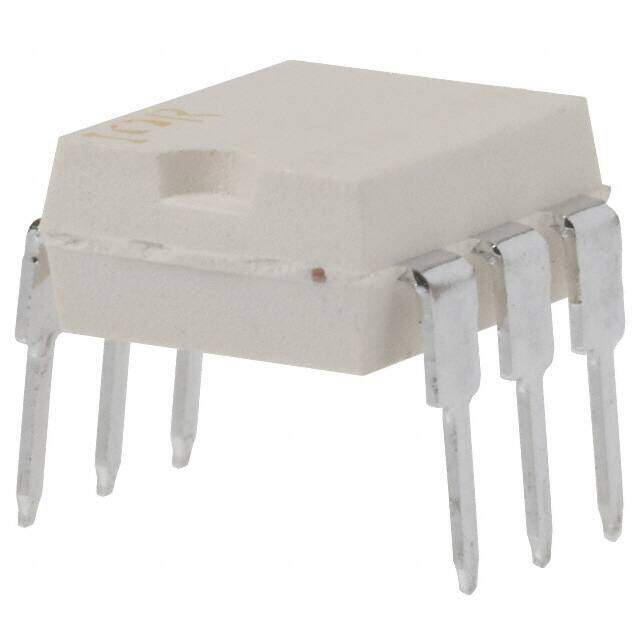

PVN012PBF image
Favorite
PVN012PBF image
Favorite
RoHS
RoHS RoHS compliant
Package 6-DIP (0.300, 7.62mm)
Category Relays / Solid State Relays
Description IC RELAY PHOTOVO 20V 2.5A 6-DIP
PDF
/
Buying Options
Total Price: USD $10.84
Unit Price: USD $10.8416
≥1 USD $10.8416
Inventory: 856
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 6-DIP (0.300, 7.62mm)
Number of Pins 6

Technical

Packaging Tube
Published 2008
Series PVN, HEXFET?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Resistance 100mOhm
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Capacitance 300pF
Voltage - Rated DC 20V
Current Rating 4.5A
Termination Style PC Pin
Approval Agency UL
Output Voltage 20V
Output Type AC, DC
Number of Elements 1
Circuit SPST-NO (1 Form A)
Number of Channels 1
Voltage - Input 1.2VDC
Output Current 2.5A
Throw Configuration SP, SPST
Input Type DC
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Forward Current 25mA
Max Output Voltage 20V
Rise Time 5 ms
Relay Type Relay
Fall Time (Typ) 500 μs
Voltage - Load 0V~20V
On-State Resistance (Max) 100mOhm
Max Input Current 25mA
Input Current 25mA
Isolation Voltage 4kV
Drain to Source Resistance 100mOhm
Control Current 0.003A

Dimensions

Height 3.42mm
Length 8.63mm
Width 6.47mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
