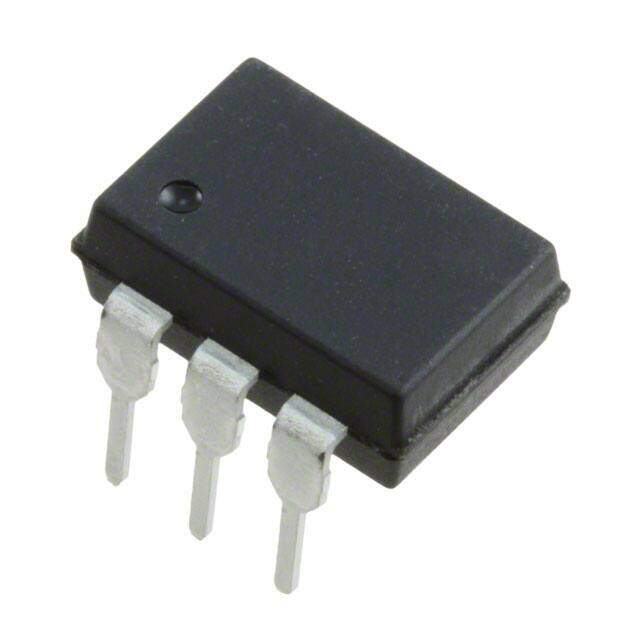

ASSR-5211-001E
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP (0.300, 7.62mm)
Category Relays / Solid State Relays
Description
AVAGO TECHNOLOGIES ASSR-5211-001E MOSFET Relay, 600 V, 200 mA, 16 ohm, SPST-NO
PDF
/
Buying Options
Total Price: USD $3.88
Unit Price: USD $3.8808
≥1 USD $3.8808
≥10 USD $3.63528
≥100 USD $3.23136
≥500 USD $3.069968
≥1000 USD $2.908312
≥3000 USD $2.844582
Inventory: 1134
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 9.9mm
Height 3.68mm
Technical
Control Current 0.003A
Isolation Voltage 3.75kV
On-State Current-Max 0.2A
Input Current 25mA
Max Input Current 20mA
On-State Resistance (Max) 16Ohm
Voltage - Load 0V~600V
Relay Type Relay
Max Input Voltage 1.7V
Max Output Voltage 600V
Forward Current 20mA
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Input Type DC
Throw Configuration SPST
Output Current 200mA
Voltage - Input 1.3VDC
Circuit SPST-NO (1 Form A)
Number of Elements 1
Max Output Current 200mA
Output Type AC, DC
Output Voltage 600V
Termination Style PC Pin
Depth 6.6mm
HTS Code 8541.40.80.00
Additional Feature CMOS COMPATIBLE, HIGH IMMUNITY, UL RECOGNIZED
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 16Ohm
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series ASSR
Published 2008
Packaging Tube
Physical
Number of Pins 6
Package / Case 6-DIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount PCB, Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 17 Weeks
