1815293
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Solid State Lighting Connectors
Description

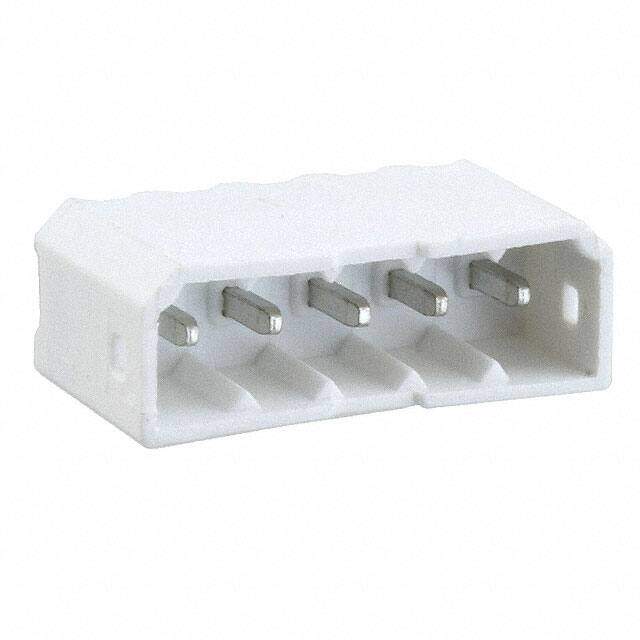

Pluggable Terminal Blocks PTSM 0,5/ 5-HV-2,5- THR WH R32
PDF
/
Buying Options
Total Price: USD $0.96
Unit Price: USD $0.95506
≥1 USD $0.95506
≥10 USD $0.901
≥100 USD $0.85
Inventory: 3670
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Tape & Reel (TR)
Published 2010
Series COMBICON PTSM
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Male Pins
Number of Positions 5
Number of Rows 1
Voltage - Rated 150V
Fastening Type Detent Lock
Current Rating (Amps) 5A
Pitch 0.098 2.50mm
Orientation Vertical
Style Board to Cable/Wire
Current Rating 6A
Approval Agency UL
Housing Color White
Terminal and Terminal Block Type STRIP TERMINAL BLOCK
Dimensions
Height 9.5mm
Length 5mm
Width 14.2mm
Compliance
RoHS Status RoHS Compliant
