1815264
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Solid State Lighting Connectors
Description

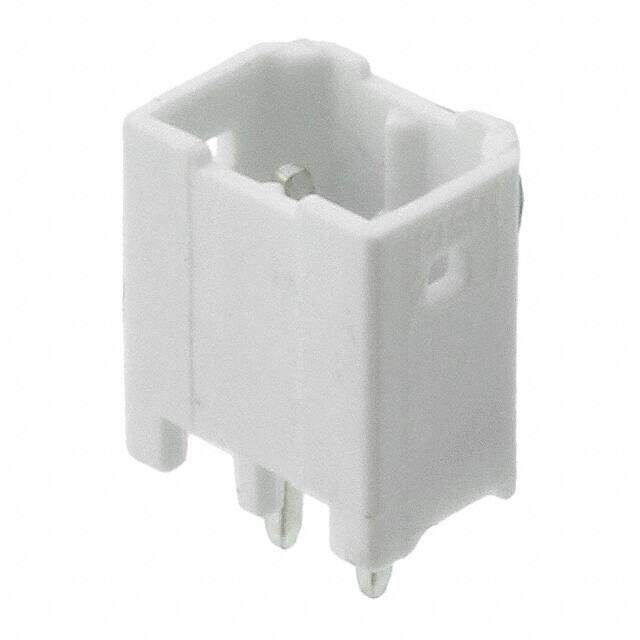

Pluggable Terminal Blocks PTSM 0,5/ 2-HV-2,5- THR WH R32
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.50562
≥1 USD $0.50562
≥10 USD $0.477
≥100 USD $0.45
Inventory: 3090
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 9.5mm
Length 5mm
Height 6.7mm
Technical
Terminal and Terminal Block Type STRIP TERMINAL BLOCK
Number of Poles 2
Housing Color White
Current Rating 6A
Style Board to Cable/Wire
Orientation Vertical
Pitch 0.098 2.50mm
Current Rating (Amps) 5A
Fastening Type Detent Lock
HTS Code 8536.69.40.40
Voltage - Rated 150V
Number of Rows 1
Connector Type Header, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON PTSM
Published 2013
Packaging Tape & Reel (TR)
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 13 Weeks
