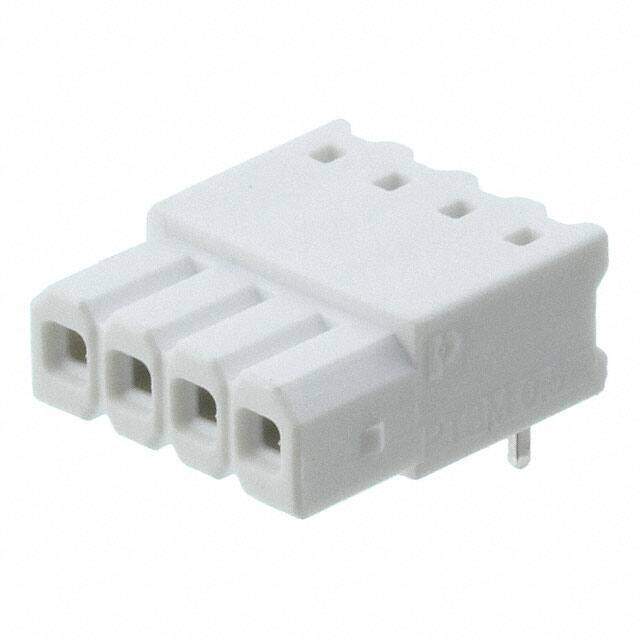

1815002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Solid State Lighting Connectors
Description
Pluggable Terminal Blocks PTSM 0,5/ 4-HHI-2,5- THR WH R32
PDF
/
Buying Options
Total Price: USD $0.61
Unit Price: USD $0.6072
≥1 USD $0.6072
Inventory: 560
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Housing Material Polyamide (PA), Nylon
Technical
Packaging Tape & Reel (TR)
Published 2014
Series COMBICON PTSM
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Female Sockets
Number of Positions 4
Number of Rows 1
Voltage - Rated 150V
Fastening Type Detent Lock
Current Rating (Amps) 5A
Pitch 0.098 2.50mm
Style Board to Cable/Wire
Current Rating 6A
Contact Finish Tin
Housing Color White
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 4
Safety Approval EAC; UL
Fastening Method CONNECTOR
Dimensions
Length 12mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
