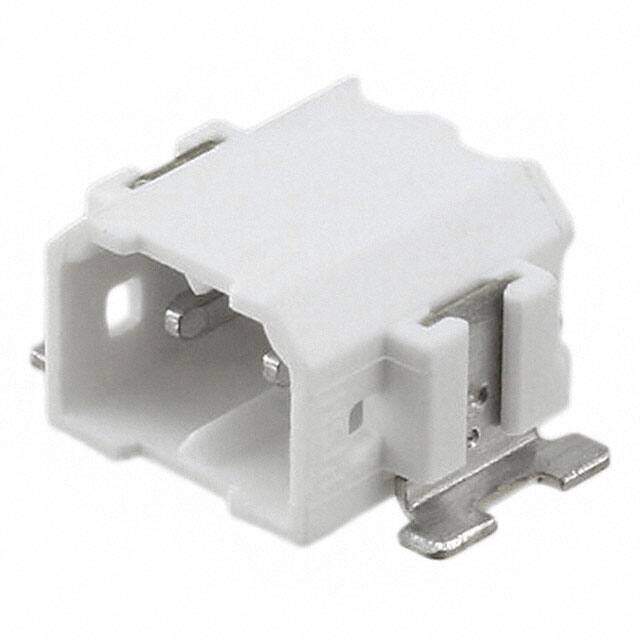

1814919
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Solid State Lighting Connectors
Description
Pluggable Terminal Blocks PTSM 0,5/ 2-HH0-2,5- SMD WH R32
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.69663
≥1 USD $0.69663
≥10 USD $0.6572
≥100 USD $0.62
Inventory: 9347
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 10.6mm
Length 8.65mm
Technical
Terminal and Terminal Block Type STRIP TERMINAL BLOCK
Number of Poles 2
Max Current Rating 6A
Housing Color White
Approval Agency UL
Contact Finish Tin
Current Rating 6A
Style Board to Cable/Wire
Depth 9.5mm
Orientation Right Angle
Pitch 0.098 2.50mm
Current Rating (Amps) 5A
Fastening Type Detent Lock
HTS Code 8536.69.40.40
Voltage - Rated 150V
Gender Male
Number of Rows 1
Connector Type Header, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series COMBICON PTSM
Published 2014
Packaging Tape & Reel (TR)
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Supply Chain
Factory Lead Time 4 Weeks
