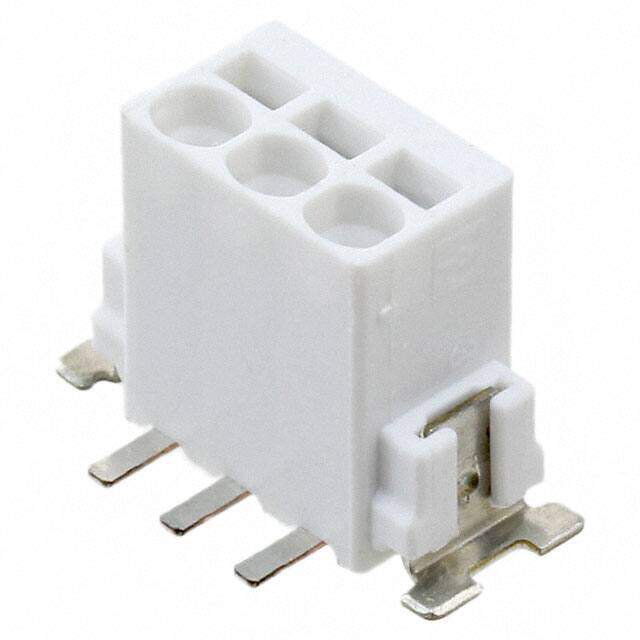

1814715
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Connectors, Interconnects / Solid State Lighting Connectors
Description
Pluggable Terminal Blocks PTSM 0,5/ 3-2,5-V SMD WH R44
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
Inventory: 95
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 12.6mm
Length 5mm
Technical
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Poles 3
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 26 AWG
Wire Gauge 20-26 AWG
Housing Color White
Current Rating 6A
Style Board to Cable/Wire
Depth 9mm
Orientation Vertical
Pitch 0.098 2.50mm
Current Rating (Amps) 5A
Voltage - Rated 150V
Gender Female
Number of Rows 1
Connector Type Receptacle, Poke-In Wire
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series COMBICON PTSM
Published 2013
Packaging Tape & Reel (TR)
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 13 Weeks
