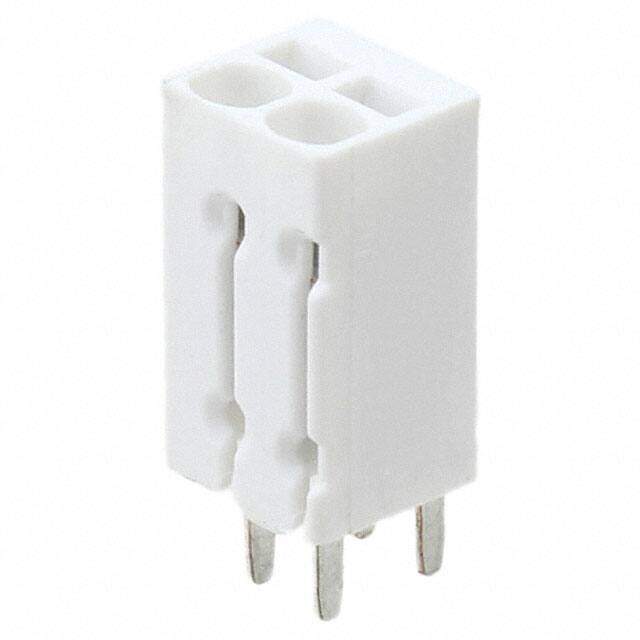

1814566
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Solid State Lighting Connectors
Description
TERM BLOCK 2POS
PDF
/
Buying Options
Total Price: USD $0.44
Unit Price: USD $0.44
≥1 USD $0.44
Inventory: 327
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 5.5mm
Length 5mm
Technical
Stripping Length 6mm
Number of Positions Per Level 2
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 26 AWG
Current 5A
Number of Levels 1
Voltage 150V
Wire Gauge 20-26 AWG
Housing Color White
Approval Agency UL
Current Rating 6A
Style Board to Cable/Wire
Depth 10mm
Orientation Straight
Pitch 0.098 2.50mm
HTS Code 8536.69.40.40
Gender Female
Connector Type Receptacle, Poke-In Wire
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON PTSM
Published 2013
Packaging Tape & Reel (TR)
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper
Supply Chain
Factory Lead Time 4 Weeks
