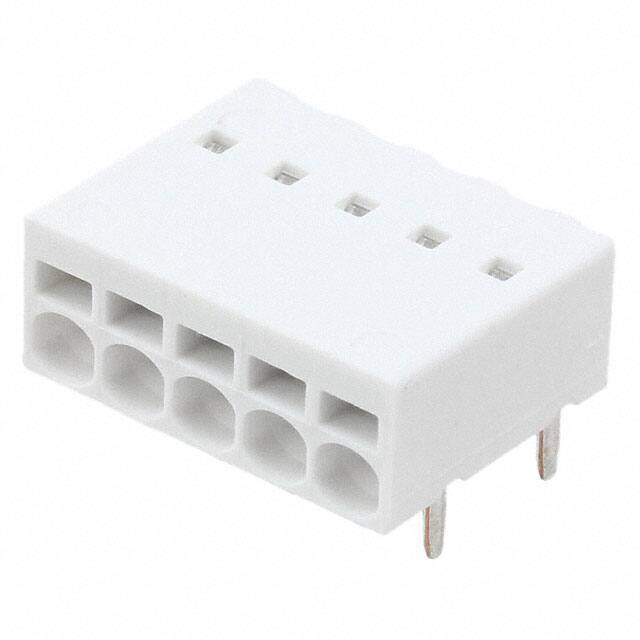

1814524 image
Favorite
1814524 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Solid State Lighting Connectors
Description Pluggable Terminal Blocks PTSM 0,5/ 5-2,5-H THR WH R32
PDF
/
Buying Options
Total Price: USD $0.75
Unit Price: USD $0.748
≥1 USD $0.748
Inventory: 1128
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 10mm
Length 13mm

Technical

Stripping Length 6mm
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 26 AWG
Wire Gauge 20-26 AWG
Housing Color White
Approval Agency UL
Current Rating 6A
Style Board to Cable/Wire
Orientation Horizontal
Pitch 0.098 2.50mm
Current Rating (Amps) 5A
Voltage - Rated 150V
Number of Positions 5
Connector Type Receptacle, Poke-In Wire
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON PTSM
Published 2014
Packaging Tape & Reel (TR)

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 13 Weeks
