1814511
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Solid State Lighting Connectors
Description

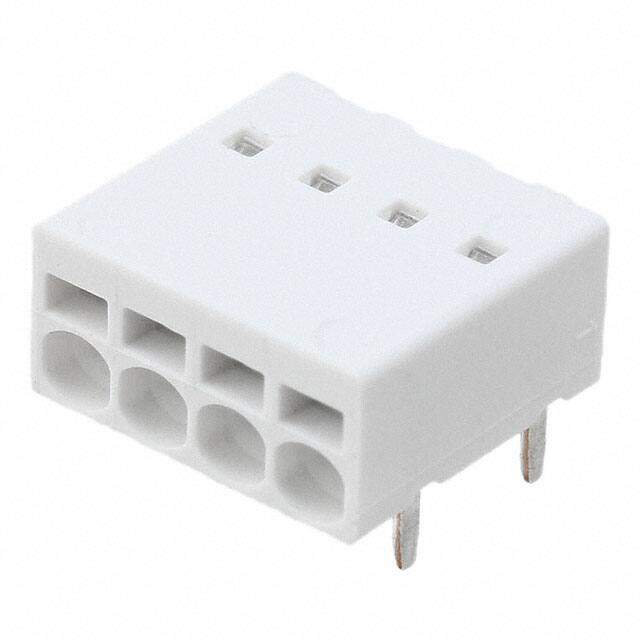

Pluggable Terminal Blocks PTSM 0,5/ 4-2,5-H THR WH R32
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
Inventory: 266
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Material Polyamide
Housing Material Polyamide (PA), Nylon
Technical
Packaging Tape & Reel (TR)
Published 2013
Series COMBICON PTSM
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Poke-In Wire
Number of Rows 1
Gender Female
Voltage - Rated 150V
Current Rating (Amps) 5A
Pitch 0.098 2.50mm
Orientation Horizontal
Depth 5mm
Style Board to Cable/Wire
Current Rating 6A
Approval Agency UL
Housing Color White
Wire Gauge 20-26 AWG
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 20 AWG
Number of Poles 4
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Stripping Length 6mm
Dimensions
Length 10.5mm
Width 10mm
Compliance
RoHS Status RoHS Compliant
