2106124-9
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Solid State Lighting Connectors - Contacts
Description

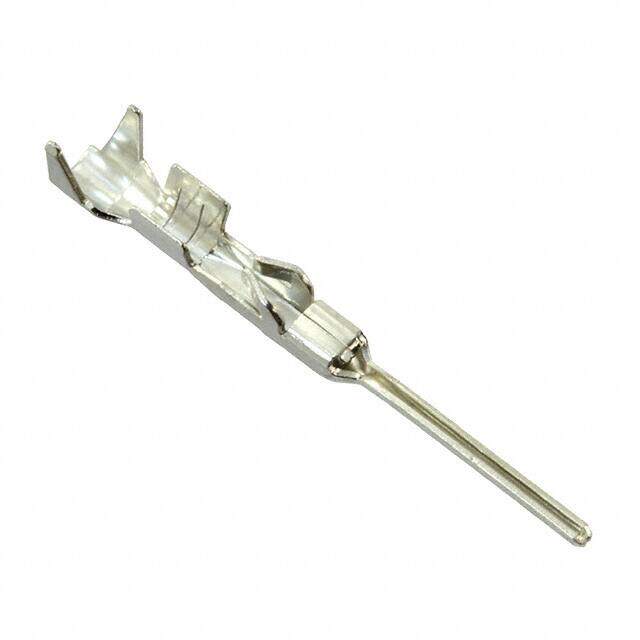

TE CONNECTIVITY 2106124-9Contact, Pin, 20 AWG, 18 AWG, Crimp, Brass
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3256
≥1 USD $0.3256
≥10 USD $0.29392
≥100 USD $0.292864
≥500 USD $0.286528
≥1000 USD $0.244992
≥3000 USD $0.220458
Inventory: 9732
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Width 1.47mm
Length 18.2372mm
Height 1.3716mm
Technical
Make First / Break Last No
Insulation Diameter 2.1 mm
Contact Current Rating 5A
Sealable Yes
Wire/Cable Gauge 18 AWG
Wire Gauge (Min) 18 AWG
Wire Gauge (Max) 20 AWG
Wire/Cable Type Discrete
Max Current Rating 5A
ELV Compliant
Wire Gauge 18-20 AWG
Housing Color Black
Number of Contacts 1
Contact Finish Tin
Current Rating 5A
Style Board to Cable/Wire
Depth 2.8mm
Shielding Unshielded
Orientation Straight
Gender Male
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 221°C
Number of Positions 1
Connector Type Contact, Tab
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SlimSeal
Published 2010
Packaging Bulk
Physical
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 15 Weeks
