1-2106123-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Solid State Lighting Connectors - Contacts
Description

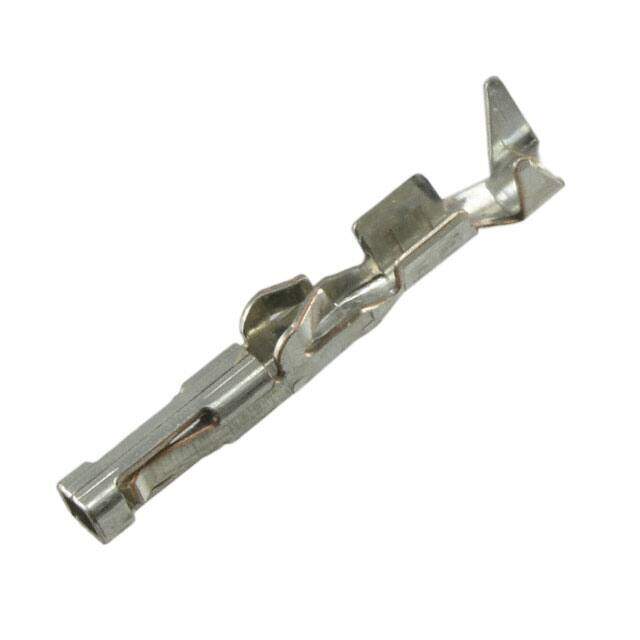

CONN SSL SKT CONT 22-24AWG CRIMP
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.176
≥1 USD $0.176
≥10 USD $0.154
≥100 USD $0.15312
≥500 USD $0.151184
≥1000 USD $0.139744
≥3000 USD $0.114858
Inventory: 147484
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Cable
Mounting Type Free Hanging (In-Line)
Technical
Packaging Cut Tape (CT)
Published 2011
Series SlimSeal
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Contact, Socket
Number of Positions 1
Max Operating Temperature 221°C
Min Operating Temperature -40°C
Gender Female
Orientation Straight
Shielding Unshielded
Depth 2.6mm
Style Board to Cable/Wire
Contact Finish Tin
Number of Contacts 1
Housing Color Black
Wire Gauge 22-24 AWG
ELV Compliant
Max Current Rating 3.5A
Wire/Cable Type Discrete
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 22 AWG
Wire/Cable Gauge 22 AWG
Sealable Yes
Contact Current Rating 3.5A
Insulation Diameter 1.6002 mm
Make First / Break Last No
Dimensions
Height 1.3716mm
Length 13.29mm
Width 1.47mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
